20 HP
28 mm deep
Current Draw
117 mA +12V
8 mA -12V
0 mA 5V
$304 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

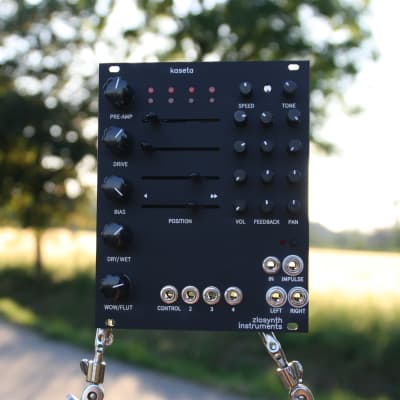

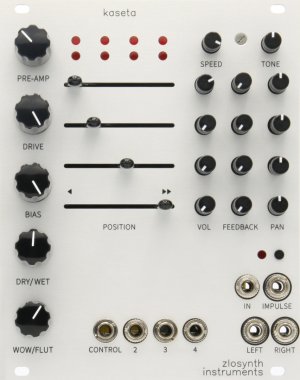

Saturating tape delay and feedback sculptor


This multi-purpose module is inspired by reel-to-reel tape machines. It simulates magnetic hysteresis to provide warm saturation, its four independent delay lines can be used to sculpt rhythms or feedback loops, and it offers wow and flutter control. The module also goes beyond typical tape machine features, with free-moving delays, trigger sequencing, and an internal oscillator.

Note that this is a eurorack module, not a complete synthesizer. It cannot be used without a case and a power supply.

Overview + demo

Video preview


While the module works perfectly well as a regular delay, its flexible interface can also be wired up to provide a variety of effects, sounds or CV sources.

  • Delay with 4 reading heads
  • Up to 5 minutes of audio recording
  • Tape saturation simulation
  • Wow and flutter effects
  • Tone control
  • Voltage-controlled oscillator
  • Trigger sequencer
  • Stereo output
  • LEDs visualizing dialed parameters
  • Programmed in Rust
  • Based around Electro-Smith's Daisy Patch SM platform
  • Aluminium panel with high-quality anodized finish
  • CNC engraved lettering
  • 20 HP, skiff friendly

To learn more, see the video above or read the User Manual.
