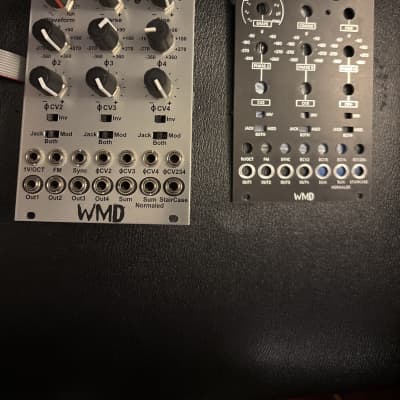

Eurorack Module Phase Displacement Oscillator from WMD

Dimensions: 10 HP; 40 mm deep

Current Draw: 115 mA +12V; 40 mA -12V; ? mA 5V

Price: $449Price in €

This Module is discontinued.

Phase Displacement Oscillator

WMD

Manufacturer Page

LFO Oscillator Phase Shifter

Phase Displacement Oscillator

Analog Sawcore VCO
Temperature Compensated
Linear (AC/DC) and Expo (DC) FM
Bipolar Attenuators for FM
Calibrated 1V/Oct Input
Hard Sync Input (LFO Reset)
~.0012Hz (14min) to >=10kHz
Digital Waveshaper
Four Simultanious Outputs
Phase Modulation for Outputs 2,3,4
Bipolar CV Inputs for Phase Mod
Any waveform on any output
14 Bit Input, 12 bit Output
100kHz Sample Rate
Channel Indicator LEDs
Sum output of all channels
Expandable

More details : http://www.wmdevices.com/pdo.php

Ø 4.56 (9 Votes) Average Rating

submitted Oct 14th 2012, 19:50 by demonam | last Change Jun 24th 2017, 15:02 by dysonant
