Dimensions
38 HP
35 mm deep
Current Draw
170 mA +12V
50 mA -12V
0 mA 5V
Price
$644 Price in €

This Module is currently available.

Specs are approved by the manufacturer

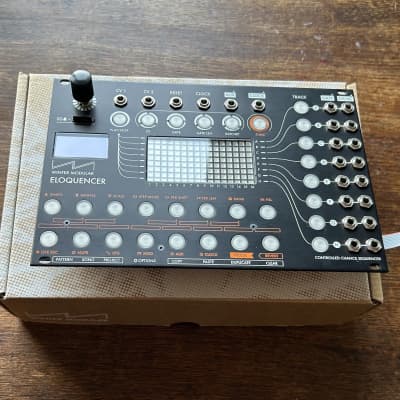

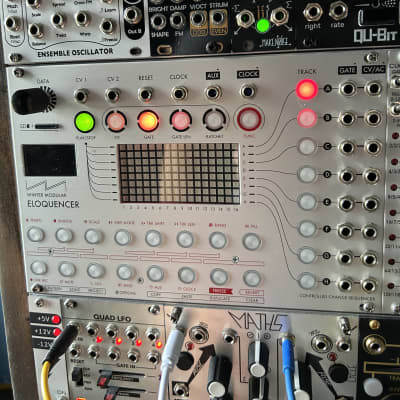

CV/Gate Sequencer

Inputs and Outputs:
- 8 V/oct CV Output
- 8 Trigger / Gate Output
- Reset Input
- External Clock Input (configurable. i.e: can be used as a clock divider / multiplier)
- Aux Output (configurable)
- Clock Output (configurable. i.e: can be used as a clock divider / multiplier)
- 2 CV Input (assignable to different parameters)
Main Features:
- Pattern length independent for each track and pattern
- Gate probability independent for each step
. Tie gates ( for gate durations longer than a step)
- CV, CV Variation Probability, and CV Variation Probability Range adjustable for each step or track.
- Gate Length, Gate Varition Probability, and Gate Variation Probability Range adjustable for each step or track.
- Ratcheting Type, Ratcheting Type probability, and Ratcheting Variation probability adjustable for each step or track.
- Tempo and shuffle adjust
- CV Outputs quantizable in tone / scale
- Different step modes ( forward, backward, ping pong, step repeat, track clock divider ...) independent for each track and pattern.
- Fill in mode (pressing the track button will increase a desired amount of probability of any of the parameters).
- Quantized Live recording (Cvs and Gates)
- Song Mode with song parts (For arranging patterns)
- LFO Mode (not yet implemented)
. MOD Mode (not yet implemented)
- Mute Mode
- Possibility to unlink Gates and CVs
- Tracks can be de-attached from master track to allow polyrythms
- Integrated microSD card reader to save projects, do back ups of your projects, and have different cards with different sets.
- Open Source - the program can be modified using the Arduino IDE and a USB cable.
- and more...

winter-modular.com


Ø 4.48 (60 Votes) Average Rating
submitted Feb 12th 2017, 14:28 by wintermodular | last Change Jun 1st 2017, 08:53 by wintermodular
