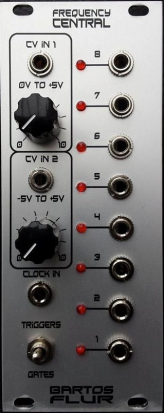

CV to trigger/gate generator

-It analyses incoming CV and breaks it down into steps
-2 inputs each with attenuator, one is 0v to 5v, the other bipolar +/-5V
-each CV attenuator can also be used as offset if no CV is present
-the clock input makes the module just sample the CV inputs when a clock is present

• It can make an analogue sequencer into a drum machine for example
• Filter Pingssssssss!
• work as Gate to Trigger converter
• If the input is an ADSR you can patch further ADSRs to the outputs for complex envelopes ;-)
• if the input is after touch cv you can use that to trigger envelopes

• 20 mA +12V
• 10 mA -12V
• 0 mA 5V
• 35 mm Depth

Available as an assembled module and as a DIY project.

This module is discontinued.
