µ Logic Block (XOR/XNOR)

Sometimes one may need a single Boolean logic gate. At least, this is what some of our customers requested!

Instead of making multiple modules for different functions, we made a 4-in-1 version.

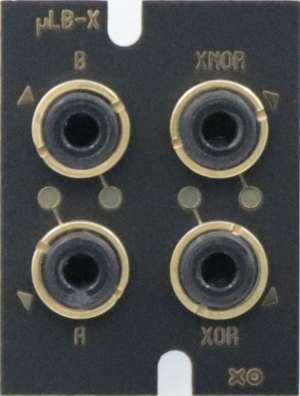

This module comes with 2 reversible panels, and this is the XOR/XNOR version. The function is selected with a DIP switch on the back.

The alternatives are linked below :

µLB-N
µLB-A
µLB-O

Our hybrid 1U front panels use the dimensions as defined by Intellijel, and the open slots make these compatible with cases using the Pulp Logic format.

Quickstart guide

http://www.xodes.net/product/ulb-eurorack-1u-single-boolean-logic-gate-not-and-or-xor

• 35 mA +12V
• ? mA -12V
• ? mA 5V
• 35 mm Depth

This module is currently available.

Available in all 1U formats
