Dimensions
8 HP
42 mm deep
Current Draw
130 mA +12V
0 mA -12V
0 mA 5V
Price
$332 Price in €

This Module is a prototype or in a concept phase.

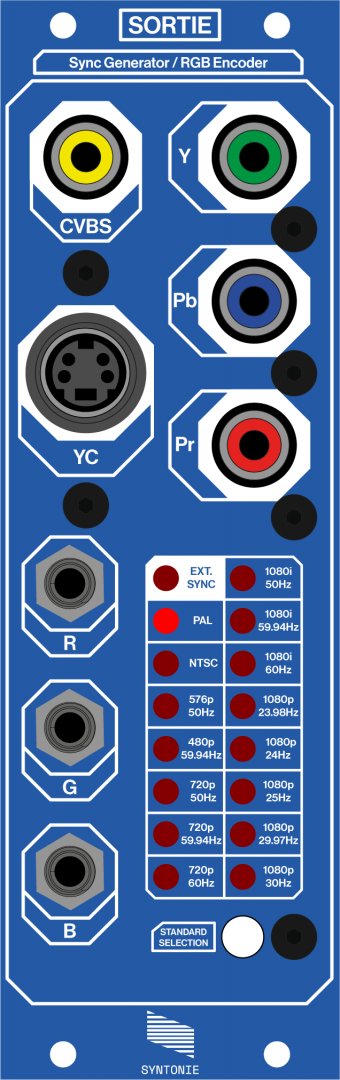

Sync Generator / RGB Encoder

Sortie (french for output) is a RGB to Composite/S-video/Component encoder and sync generator supporting the following standard:

  • 576i50 (PAL)
  • 480i59.94 (NTSC)
  • 576p50
  • 480p59.94
  • 720p50
  • 720p59.94
  • 720p60
  • 1080i50
  • 1080i59.94
  • 1080i60
  • 1080p23.98
  • 1080p24
  • 1080p25
  • 1080p29.97
  • 1080p30

The internal standard is selected by the mean of a push button, with a dedicated LED indicator for each standard.
When an external video signal is present at the sync input of the module, the standard will be selected automatically and the external sync LED indicator will light up.

RCA sync I/O at the rear of the module.

Can be powered through standard Eurorack 16pin connector or DC barrel connector.

Inputs:
- 0-1V RGB, 499 ohm, jack
- 0-700mV Sync in, 75 ohm, RCA (rear)

Outputs:
- 0-700mV YPbPr/CVBS, 75 ohm, RCA
- 0-700mV S-Video, 75 ohm, Mini Din-4
- 0-700mV Sync out, 75 ohm, RCA (rear)

https://syntonie.fr/products/sortie-sync-generator-rgb-encoder


submitted May 17th, 16:46 by Syntonie | last Change Jun 26th, 12:57 by Syntonie
