Dimensions
8 HP
32 mm deep
Current Draw
68 mA +12V
24 mA -12V
? mA 5V
Price
$250 Price in €

This Module is currently available.

Dual Boolean logic module with hard and programmable logic

Dual Boolean logic module with hard and programmable logic

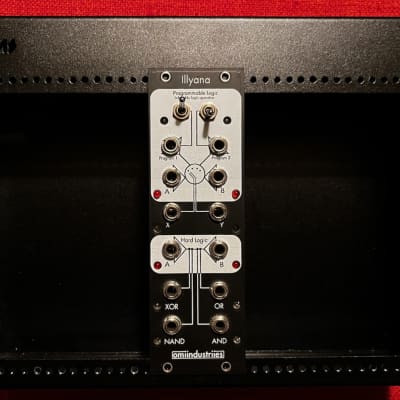

Illyana is a two channel Boolean logic module. The bottom channel has two inputs, A and B, and 4 simultaneous logic outputs, XOR, OR, NAND, & AND, this channel is labeled Hard Logic because the outputs are hardwired.

The top channel has the same A and B inputs as the bottom but which logic operation is present at the output can be programmed with the program switches and program gate inputs.

illyana is back in 2024 for one final run with a new faceplate and pink LEDs

https://www.omiindustriies.com/webstore/illyana


submitted Oct 11th, 16:58 by omiindustriies | last Change Oct 15th, 15:03 by tsope
