Offer Details

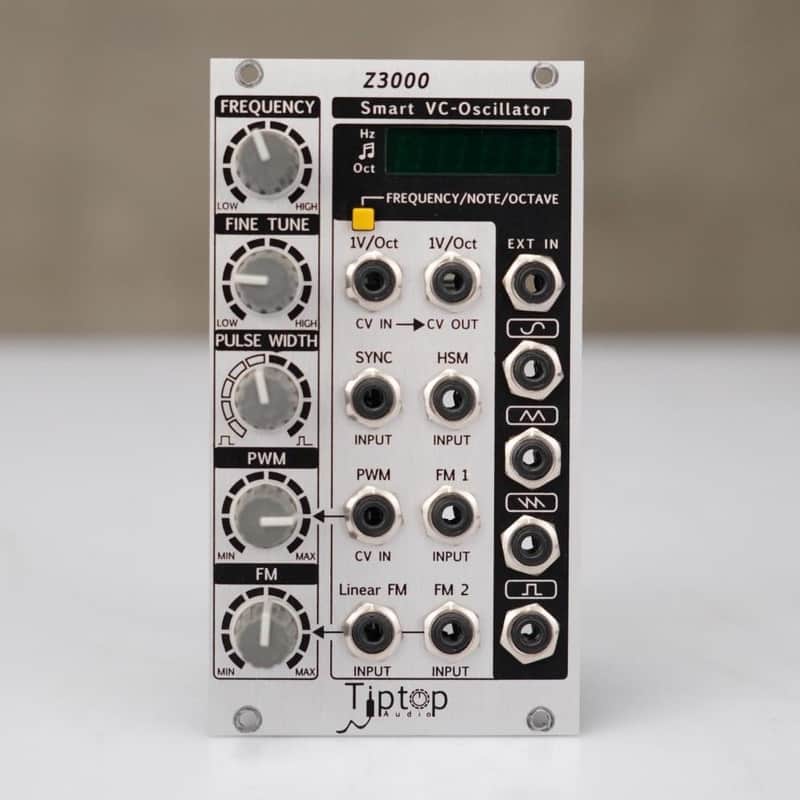

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58504 BRAND: TipTop Audio MODEL:  Z3000 Smart VC Oscillator FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a TipTop Audio Z3000 Smart VC Oscillator Eurorack Synthesizer Module. The Tiptop Audio Z3000 Smart VCO MKII is a 14HP all-analog Eurorack voltage-controlled oscillator featuring a built-in arithmetic processor for real-time, precise tuning (frequency, note/octave). It generates four waveforms—sine, triangle, sawtooth, and square—with advanced PWM and FM, offering exceptional tracking from 0.7Hz to 30kHz, plus a unique Hard Sync Modulation (HSM) input.  SPECS: Arithmetic Processor & Display: Includes a low-power blue display that can show pitch in three modes: frequency (Hz), musical note, or octave range. It refreshes once per second and can also be used via an external input to tune other oscillators in your rack. Advanced Synchronization (HSM): In addition to standard hard sync, it features Hard Sync Modulation (HSM), which allows any audio signal to modulate and distort the waveforms for complex, aggressive tonal textures. Voltage Controlled Waveshaping: The MkII version includes a non-linear VC-waveshaper that can blend the sine and triangle waves toward a "trashy sawtooth" shape, with depth controllable via CV. Broad Frequency Range: Operates from 0.7Hz to 30kHz, allowing it to function as both a standard audio oscillator and a versatile Low Frequency Oscillator (LFO).  Width: 14 HP. Depth: 26 mm. Power Consumption: 50mA (+12V) and 25mA (-12V). Tracking: Improved in the MkII version through modern transistors for superior wide-range pitch tracking. ACCESSORIES INCLUDED:   Eurorack Power Cable (4) Eurorack Screws & Washers Tip Top Stackcable  Mogami Patch Cable UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 5" x 3" x 4"
