Offer Details

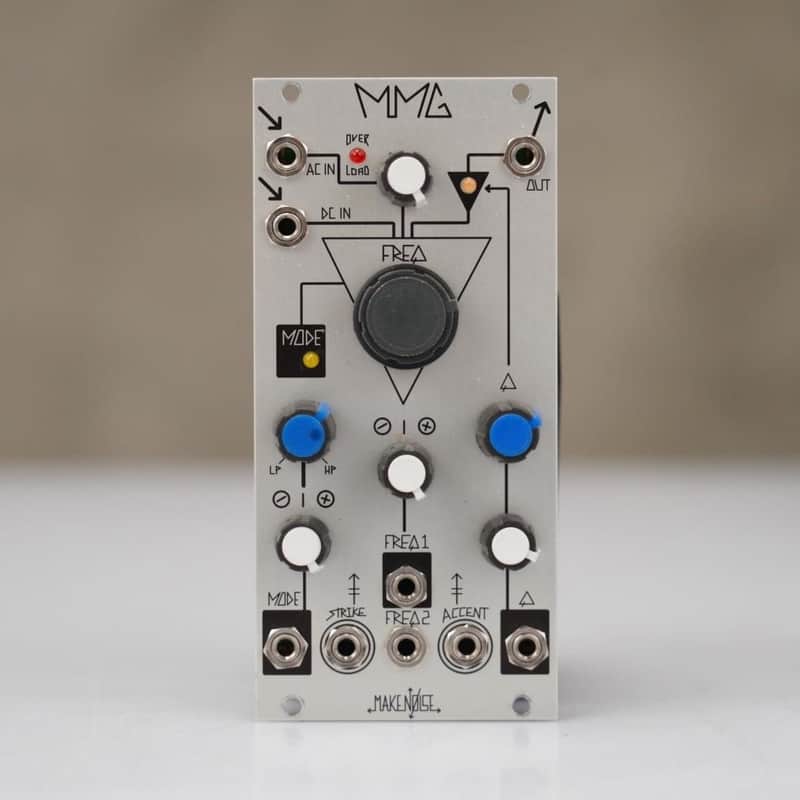

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition. INVENTORY #58486 BRAND: Make Noise Music MODEL: MMG FUNCTION: Eurorack Synthesizer Module PRODUCT DESCRIPTION: This listing is for a Make Noise MMG Eurorack Synthesizer Module. The Make Noise MMG is a 100% analog, 8HP Eurorack module combining a vactrol-based Voltage Controlled Filter (VCF) and Low Pass Gate (LPG). Inspired by the Buchla 292 and based on the QMMG core, it blends Far East/West Coast styles, featuring Voltage Controlled resonance (Q), mode morphing, and Strike/Accent inputs for percussive, acid-style tones.  SPECS: Multimode Filter Core: The MMG offers low-pass and high-pass responses with a MODE control that allows for smooth, voltage-controlled sweeping between them. Low Pass Gate (LPG) Emulation: Using the STRIKE and ACCENT inputs, the module can produce "bongo-like" percussive sounds or X0X-style punch. Vactrol-Based Response: Because it uses vactrols for gain, the frequency, mode, and Q controls have a unique, slower response compared to standard solid-state filters, contributing to a "natural" sound. Audio Sculpting: It includes an AC-coupled input with an attenuator and a smooth overdrive circuit that soft-clips "hot" signals, indicated by an overload LED. Resonance Control: The Q factor is voltage-controllable and capable of self-oscillation, while an Automatic Gain Control (AGC) circuit prevents signal levels from becoming uncontrollable at high resonance settings. Width: 12HP. Depth: 24mm. Power Requirements: Requires 45mA (+12V) and 40mA (-12V). Inputs: Includes one AC-coupled audio input (with drive/attenuation) and one un-attenuated DC input for mixing audio or control signals. Production Status: The module is officially retired/discontinued by Make Noise. ACCESSORIES INCLUDED: This item comes as seen in photos and does not include any accessories. EXTRAS INCLUDED: Eurorack Power Cable (4) Eurorack Screws & Washers UNPACKAGED WEIGHT: 1 lbs. UNPACKAGED DIMENSIONS: 5" x 2" x 3"
