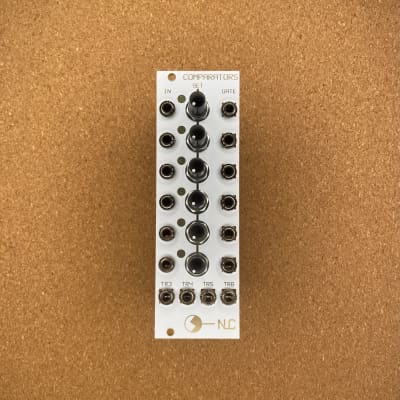

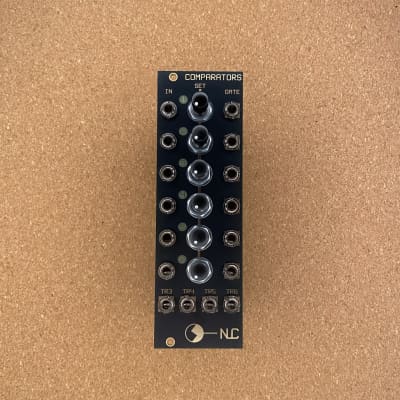

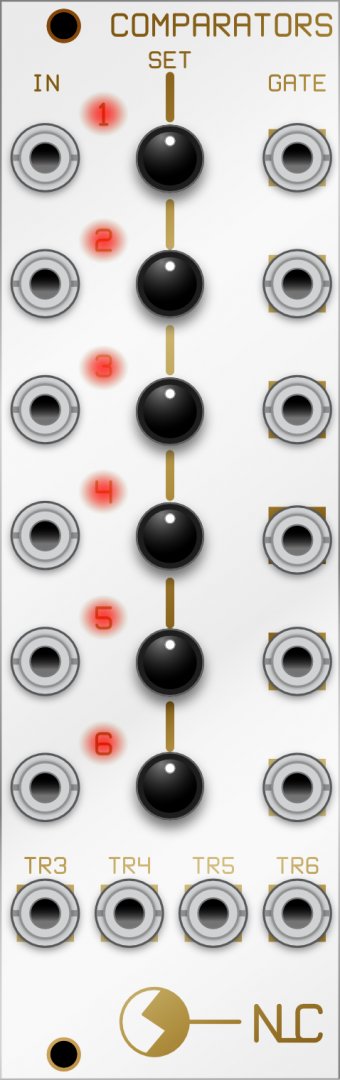

6 linked comparators with gate & trigger outputs

Decided I needed more comparators to use with chaos modules, lots of them.

This module contains 6 comparators and 4 gate to trigger converters. Each input is normalled to the input below, so a signal on input 1 will go into all 6 comparators.

The gate to trigger converters are fed from outputs 3, 4, 5 & 6.

The pots range between -5V and +5v, so can be set to trigger on the negative going section of a waveform.

Outputs go from 0 to 5V.
