4 HP
25 mm deep
Current Draw
33 mA +12V
34 mA -12V
? mA 5V
$151 Price in €

This Module is currently available.

CV/Audio Utilities

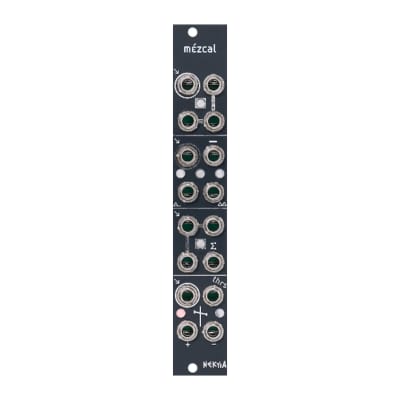

Mezcal is a collection of 4 essential Analog Utility circuits that work both with Audio and CV signals. It consists of a Buffered Multiple with 3 outputs, a Half/Full Wave Rectifier and an Inverter to transform audio and CV signals in many interesting ways, a 3 input averaging mixer for mixing cv or audio signals without clipping and a Bipolar Output Comparator with an additional NOT (-) output. The Comparator can be used to extract gates from given inputs with the added ability of varying the width of those gates by modulating the threshold voltage. By means of input normalization among all sections, the top Input (arrow) is routed to all the below Input (arrow), allowing Mezcal to deliver lots of different output signals from only one input signal!

4 Audio/CV Analog Utility Circuits

Buffered Multiple with 3 outputs

Half/Full Wave Rectifier and Inverter

3 input Mixer with a gain of 1/3 for each channel (Averager)

Bipolar Comparator with extra NOT (inverted) Output

Input Normalization. Each section Input is normalled to the Input of the below section
