Dimensions
18 HP
20 mm deep
Current Draw
90 mA +12V
30 mA -12V
0 mA 5V
Price
$359 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

Keyframer/mixer

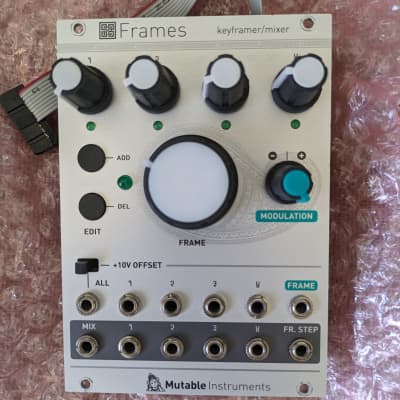

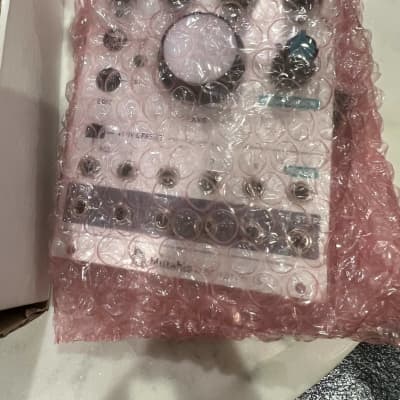

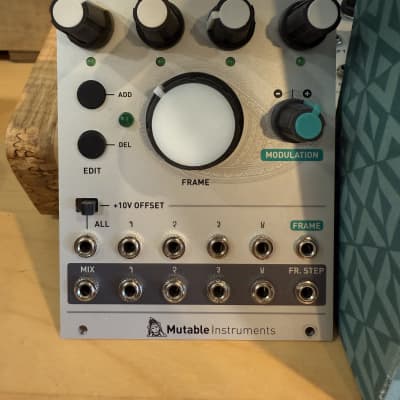

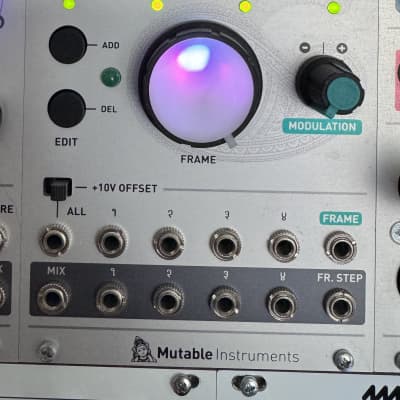

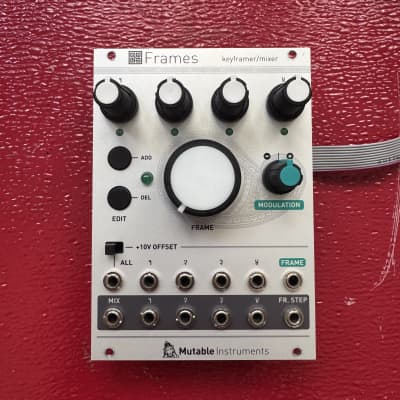

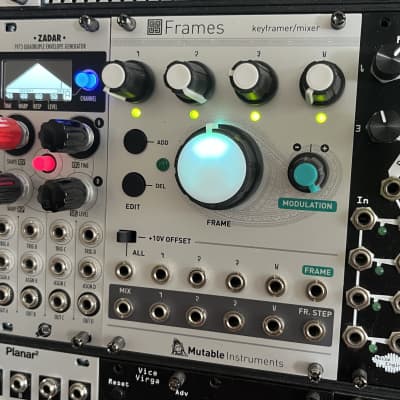

Frames - Keyframer/mixer.

The heart of Frames is a 4-channel digitally controlled analog VCA. Through flexible input/output mixing and normalling options, it can be patched to serve the following purposes (among others):
* 4-channel attenuator/VCA.
* 4-channel mixer.
* 4-channel programmable CV source.
* Quadraphonic panner.

But what makes it truly unique is the way in which channel levels can be controlled, using a technique inspired by computer animation. Frames allows up to 64 configurations of the 4 level knobs to be stored and recalled throughout the course of its big "Frame" knob. By rotating the knob (or sending a CV to the Frame modulation input), the configurations are morphed into one another.

To fine-tune the animation and get varied morphing or sequencing results, the following options are available for each of the 4 channel:
* Easing curve (stepped, linear, exponential, logarithmic, sine, bouncy)
* Attenuation response of the level knob, from linear to logarithmic

With a bit of patching and imagination, Frames can also be repurposed as a 4-channel sequencer, a multi-stage envelope generator, a trajectory generator for quadraphonic panning...

I/O:
* 4x DC-coupled signal inputs
* 4x Attenuated signal outputs
* Global signal input normalled to all inputs
* Mix output
* Frame control CV input
* Frame change trigger output

Controls:
* 4x Channel level control with LEDs for visualizing levels
* Frame control with RGB LED backlight
* Frame CV attenuverter
* Keyframe creation/suppression buttons

Technical characteristics:
* CV inputs impedance: 100k.
* Audio input impedance: 100k (25k for the global input in some configurations due to normalling).
* Cortex-M3 ARM processor.
* Open-source hardware and firmware.
* Easy firmware updates through an audio interface.
