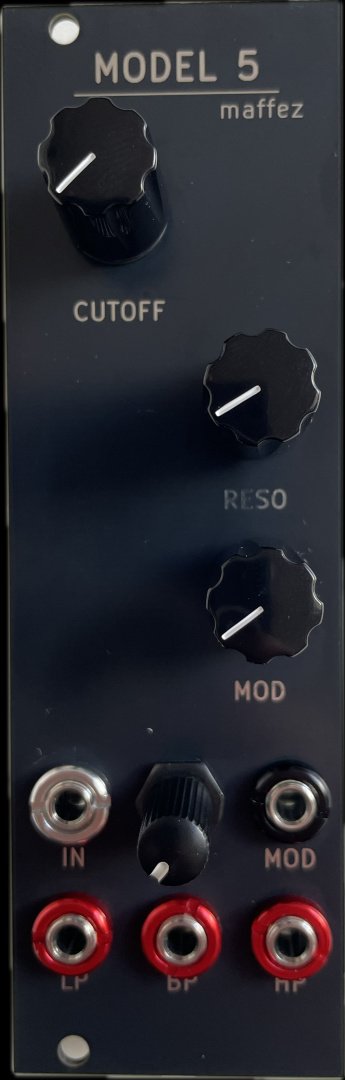

SH5 inspired VCF

There are a number of bandpass filters for Euro inspired by the Roland, yet I didn’t find any DIY versions that have CV over cutoff frequency. So, I simply took the original schematic and replaced the dual gang cutoff pot with a dual OTA and CV control. While I was at it, I also tapped the High Pass and Low Pass frequency responses that are unused in the old Roland monolith (or any of the BPF clones, for that matter).
