20 HP
36 mm deep
Current Draw
81 mA +12V
76 mA -12V
? mA 5V
$370 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Resonant 24dB/oct lowpass filter

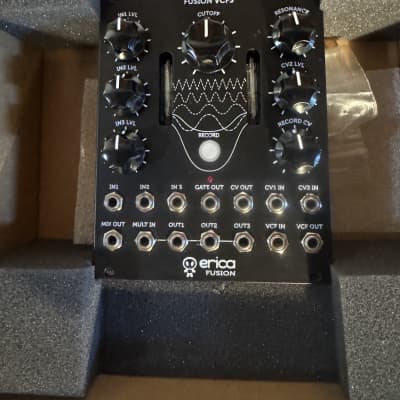

The Fusion VCF3 is resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility, the independent audio mixer and buffered multiple is incorporated in the module, and, most importantly – a CV recorder that records motion of the potentiometer, so you can design advanced modulation patterns.

Full analogue design
Vacuum tube and vactrol based filter circuit. Because of vactrol lag, the VCF will not accept audio rate modulation, the maximum modulation frequency is 10Hz
Input signal mixer with gain 2 for signal overdrive
Buffered multiple for splitting audio and CV signals
Potentiometer motion record unit with CV and gate outputs
Recorded CV multiplication and division

Technical Specifications:
Filter slope 24dB/oct
Audio Input level 10Vptp
CV input level -5V - +5V
CV Output level 0V - +5V


Ø 5.00 (5 Votes) Average Rating
submitted Apr 21st 2020, 11:41 by EricaSynths | last Change Apr 22nd 2020, 13:17 by EricaSynths
