Dimensions
8 HP
25 mm deep
Current Draw
29 mA +12V
33 mA -12V
0 mA 5V
Price
$176 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Full exponential ADSR envelope with GATE LENGHT setting.

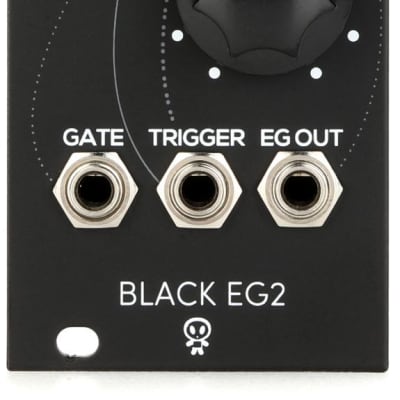

The Erica Synths Envelope Generator 2 is a re-triggerable, looping envelope generator with some unconventional features that are very useful for experimental setups. What sets the Black EG2 apart from other envelope generators is its optional GATE LENGTH setting, which allows for generating full ADSR envelopes even if a short trigger is used at the input. Likewise, in LOOP mode, the module outputs a full ADSR envelope instead of a classical AD envelope. The gate length is both manual and CV controlled, which allows for using this envelope generator in compact modular setups controlled by trigger sequencers only.
Features
Full exponential ADSR envelope
Retriggering option
Internal gate generator with adjustable gate length
Manual and voltage-controlled gate length
Full ADSR looping mode
