Dimensions
6 HP
50 mm deep
Current Draw
12 mA +12V
4 mA -12V
? mA 5V
Price
$78 Price in €

This Module is currently available.

Specs are approved by the manufacturer

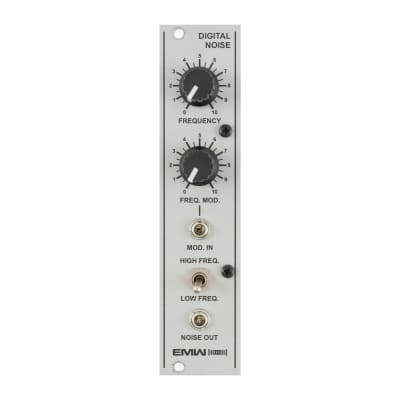

Voltage Controlled Digital Noise Generator

The EMW Digital Noise is a digital noise generator that works great for creating a wide range of noise sounds such as Atari-like tones, synthetic drum sounds, explosions, etc. The frequency of the generator can be either set by the Frequency knob or modulated by any CV signals patched into the Mod In input. There’s also a switch available on the front panel that let’s you select the frequency range (low / high).

INFO:
Eurorack (3U) form factor - 6 HP width
Noise frequency adjust
Noise frequency modulation Input with level control
Two individual outputs
Digital sound RED to WHITE noise range
Power consumption +12V [12mA] / -12V [4mA]
Connectors: 3.5mm
Weight 65g
Depth: 50mm

SoundCloud Demo:

https://www.electronicmusicworks.com/eurorack/vc-digital-noise.html


submitted Nov 29th 2012, 16:51 by EMW | last Change May 10th 2023, 20:08 by EMW

1 Users are observing this
