Dimensions
8 HP
33 mm deep
Current Draw
35 mA +12V
35 mA -12V
0 mA 5V
Price
$175 Price in €

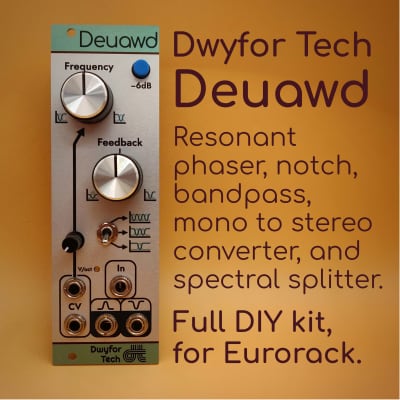

Module is available as a DIY project only.

This Module is currently available.

Specs are approved by the manufacturer

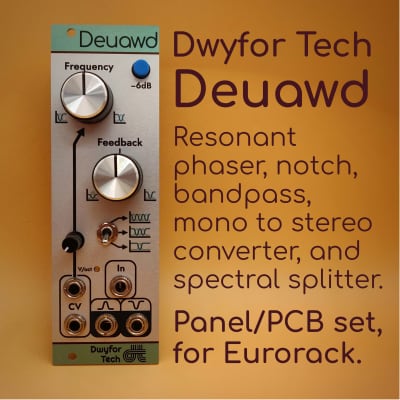

Resonant mono-to-stereo phaser, spectral splitter, bandpass, notch, and more

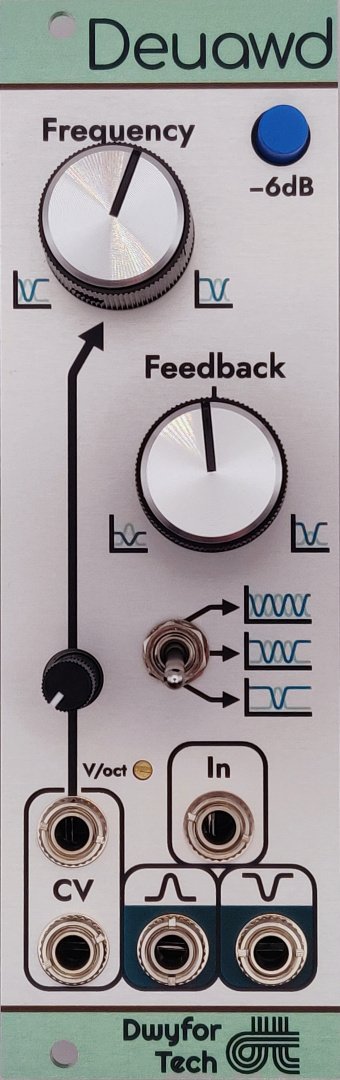

Deuawd ('duet' in the Welsh language) is a six-pole, diode-based phaser for Eurorack modular systems. Simultaneous bandpass and notch outputs allow it to be a spectral splitter, mono-to-stereo converter, and much more with minimal patching. Attenuverting feedback and selection of three different poles make it a thoroughly flexible, multipeak filtering powerhouse.

The two outputs are designed to be completely complementary - Whatever frequencies are missing at one output, when compared to the input, will be the only frequencies present on the other output. Mixing the two outputs together reconstructs the input signal verbatim. This allows for any signal to be split according to its frequency content, and is what allows it to be such an effective stereo-ifying device.

The feedback can be positive or negative depending on which way you twist the knob. Negative feedback adds resonance to the bandpass output, positive to the notch.

Buy Deuawd from the Dwyfor Tech stores on Reverb or Etsy.
Read the build/user manual and more in the documentation.
