Dimensions
22 HP
80 mm deep
Current Draw
60 mA +12V
20 mA -12V
0 mA 5V
Price
$220 Price in €

This Module is currently available.

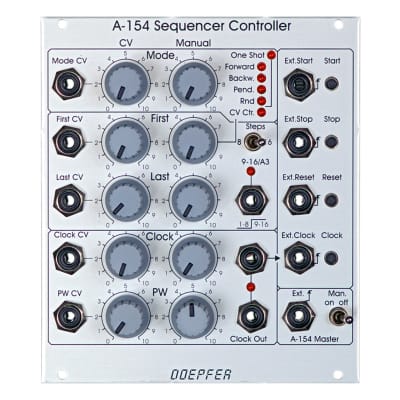

Enhanced Sequencer Controller

Controller Unit for the A-155 sequencer providing several additions:
* Different running modes (One Shot, Forward, Backward, Pendulum, Random, CV controlled)
* First step setting including CV input
* Last step setting including CV input
* Gate output to chain two A-155 to a dual 16 step sequencer using an A-150 VC switch
* Clock generator with frequency and pulse width modulation

http://www.doepfer.de/a154.htm
