DARV

Dual Attack, Release, & VCA

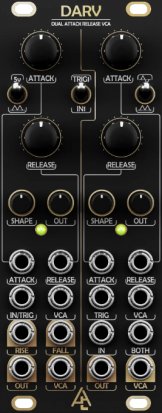

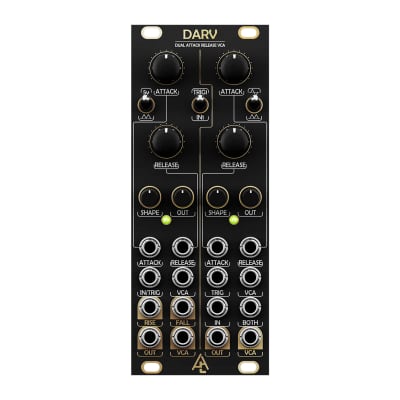

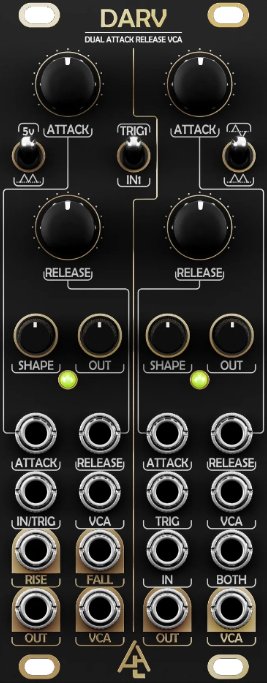

DARV - Dual Attack, Release, & VCA

Two channels of function generator, oscillator, slew limiter, envelope, and VCAs. This is half of our QARV module but is cascadeable. So you get two channels of modulation or a two channel envelope generator w/ mixer. You can then connect multiple units together to cascade to get 4, 6, or 8 channels. It can also be connected to our Mixer lineup (Bartender/Barback) so you don't have to use a channel on your final mixer.

Both channels have the following features:

Uni-polar oscillator mode
Attack and release time control via potentiometer and via input jack
Shape control that controls shape for both attack and release
Output attenuverter
VCAs that normal to each subsequent channel (CH1 -> CH2, etc.). So you can get a mix of all channels out of the CH2 VCA output (unless you patch a VCA output from an earlier channel)
Channel 1

Voltage source (5V)
Can be switched between IN (slew mode) and TRIG (envelope) mode
RISE and FALL gates. You can use our G&T module to turn these gates into triggers.
Cycle times 50sec - 1kHz (0.5ms)
Channel 2:

Bi-polar oscillator mode
Dedicated IN and TRIG jacks (helpful for adding offset to a triggered ENV)
BOTH input jack to simplify patching both the attack and release (also inverts the input to give more standard pitch tracking of higher voltage equals higher pitch)
Cycle times 200sec - 1kHz (0.5ms)
QARV patch guide by Robots Are Red - Patch Guide

Width: 10hp
12V: 115mA
-12V: 80mA
