Dimensions
14 HP
35 mm deep
Current Draw
170 mA +12V
11 mA -12V
0 mA 5V
Price

This Module is currently available.

Specs are approved by the manufacturer

Ultra precise wavetable lfo with fantastic possibilities

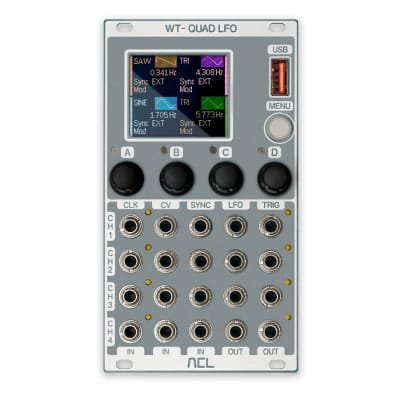

WT-QUAD LFO
4-channel wavetable LFO

Specifications:
* Width: 14HP
* Depth: 35mm
* +12V: 170mA
* -12V: 11mA
* +5V: not specified

Features:
- 4 independent LFO channels
- RGB OLED display (160x128 px)
- Frequency range: 0.0032 Hz to 4 kHz
- USB port for firmware updates and wavetable loading

Per Channel:
* Clock input
* Sync input
* CV input
* LFO output
* Trigger output

Wavetable Features:
* Built-in waveforms: Saw, Square, Sine, Triangle, Ramp
* Support for up to 12 custom wavetables
* Wavetable morphing between 2 waveforms
* Cross-modulation between channels

CV Control:
* Frequency (linear/exponential)
* Attenuation
* Offset
* Wavetable morphing

Additional Functions:
* Adjustable clock division (1-128 steps)
* Configurable sync polarity
* Preset storage system
* Web-based LFO designer interface
* Custom wavetable support (WAV mono, 16-bit/44.1kHz, max 4096 samples)

LFO Designer

The ACL LFO-Designer is a web-based tool for creating custom waveforms for the WT-QUAD LFO. Create complex modulation shapes by mixing and manipulating basic waveforms (sine, square, triangle, ramp) with adjustable amplitudes. Preview your designs in real-time and export directly to WAV format ready for loading into your module.

Features:
* Visual waveform editor
* Mix multiple basic waveforms
* Real-time preview
* One-click export to correct format (44.1kHz/16-bit WAV)

Note:
Module can reach temperatures up to 60°C on back side during operation - consider placement regarding temperature-sensitive modules.

https://www.audiophilecircuitsleague.com/products/wt-quad-lfo.php


submitted Apr 14th 2021, 11:05 by ACLMusicalInstruments | last Change Nov 20th, 19:59 by ACLMusicalInstruments
