Dimensions
8 HP
35 mm deep
Current Draw
20 mA +12V
20 mA -12V
0 mA 5V
Price
$190 Price in €

This Module is currently available.

Specs are approved by the manufacturer

ADSR - EG + EG inverted

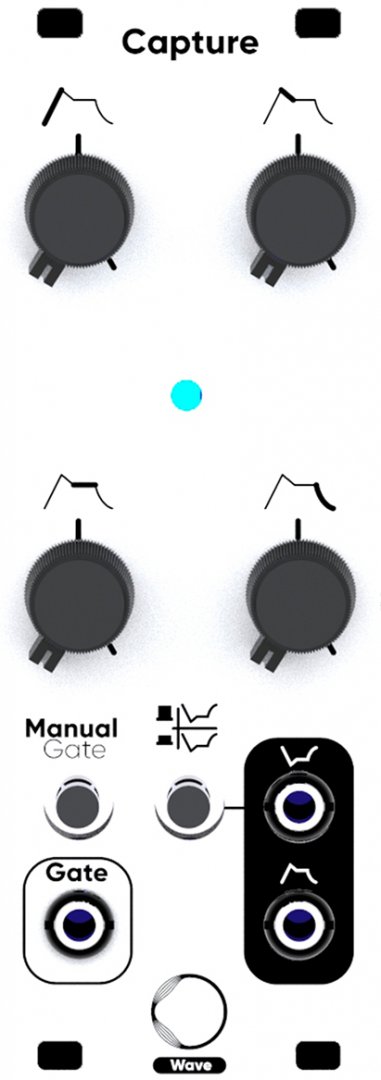

The Capture is an ADSR (Attack, Decay, Sustain, Release) envelope generator with an intuitive and minimalist design for quick and easy use. This module features an ADSR output and an additional inverted output with an offset variation, subsequently located in either the negative or positive polarity of its axis.

It is a powerful and versatile Eurorack module suitable for live performances, music production, and sound experimentation, proving especially useful when controlling the temporal evolution of sounds and for managing parameters of other modules through their Control Voltage (CV) inputs.

Module Features.

Control of the four parameters (ADSR) through its knobs.
ADSR envelope output signal.
Inverted ADSR output signal.
Polarization switch for the inverted ADSR.
Gate input and manual activation through a push–button.
