Dimensions
12 HP
35 mm deep
Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price
$215 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Mixer 5 Channels

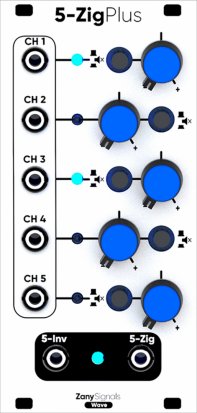

The 5-ZigPlus is a monophonic mixer with an intuitive and minimalist design for easy and quick use. It features five monophonic channels for summing input signals. It’s a powerful and versatile Eurorack module suitable for live performances, music production, and sonic experimentation.

Each channel has an amplitude control knob that can go up to 7dBu and a mute switch. Any type of signal from a VCO or another module can be input into each channel. It allows for the frequency combination of input signals, resulting in the sum of up to five signals. This process is referred to as Additive Synthesis.

Module Features.

Five independent input channels.
Five amplitude control knobs for each input up to 7dBu.
Mute switch for each channel.
Led indicator level for the output signal.
Both 5-Zig and 5-Inv outputs have buffers for signal stability.

https://www.zanysignals.com/produc/mono-plus


submitted May 23rd, 19:52 by ZanySignals | last Change Jun 26th, 21:14 by ZanySignals
