Dimensions
10 HP
34 mm deep
Current Draw
100 mA +12V
70 mA -12V
0 mA 5V
Price
$289 Price in €

This Module is currently available.

Specs are approved by the manufacturer

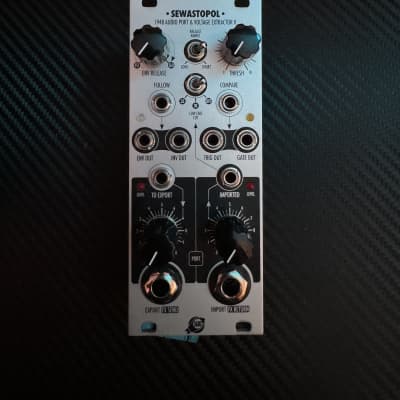

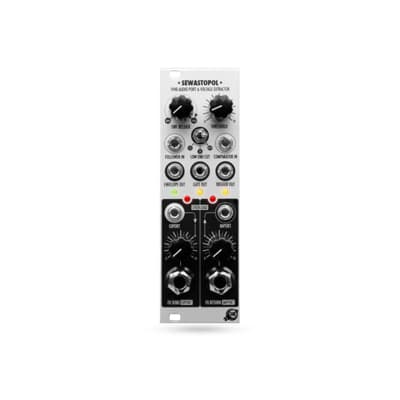

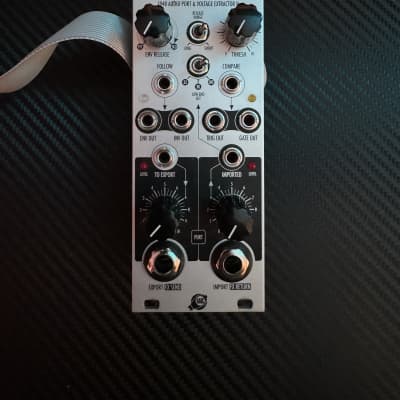

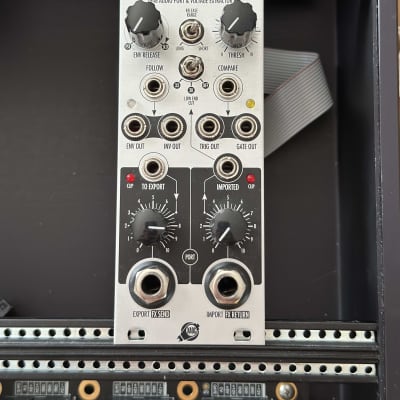

1948 Audio Port & Voltage Extractor

  • Balanced, attenuated output
  • Amplified input (Import, precise wide range preamp circuit)
  • Unique, very precise envelope follower with adjustable release range and hysteresis
  • Low end cut filter to shape incoming signal
  • Comparator with trigger and gate outputs

Sewastopol is a multifunction eurorack module designed for easy interfacing of external gear to your modular environment. It can export line and professional level audio, import audio from instruments and electroacoustic transducers, and analyze the incoming audio to generate voltages and triggers to control your modular system. This is a second, vastly improved revision to the original 2014 Sewastopol, featuring a completely redesigned preamplifier circuit, better ergonomics and various other improvements.

http://xaocdevices.com/main/sewastopol2


Ø 4.67 (12 Votes) Average Rating
submitted Apr 16th 2017, 18:59 by ibsen | last Change May 5th 2019, 11:04 by ibsen
