Dimensions
4 HP
Current Draw
50 mA +12V
10 mA -12V
? mA 5V
Price
$78 Price in €

This Module is currently available.

ZXXN

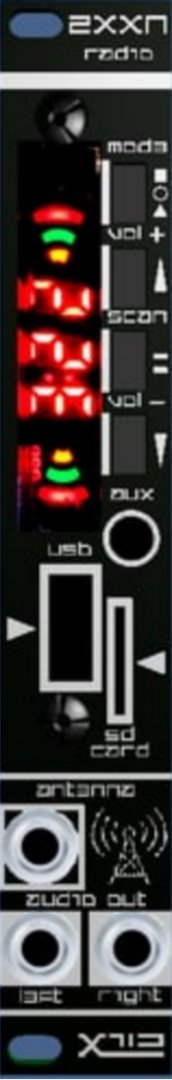

ZXXN is a 4HP radio module

The module has the following features for the capture and streaming of sound.

FM radio receiver.
USB flash drive port for audio file streaming.
SD card slot for audio streaming.
AUX audio input. Insertion of a eurorack level signal will generate saturation.
BLUETOOTH - bluetooth receiver. Hook your phone or other bluetooth capable device to it to stream things such as youtube audio, field recordings made with the phone and other material to it..
It's a tight and compact build. It also has a cool lcd display that wouldn't look out of place in the 80s on an old grandstand handheld electronic game (pacman /astroblaster / firefox f7 etc) :D

It has an antenna input which can be used with a eurorack cable. Quality of reception varies a lot depending on location and weather conditions. Sometimes i can get ten channels in my workshop, sometimes i struggle to get one. There is however always a wealth of noise and interference to be found and used regardless of reception quality.

The module can be used for the most part with the controls up front. But it comes with a remote control (battery not included) that on top of the standard play/pause/track skip/volume control/FM scan accessible on the front panel, allows you to access a couple of extra features. Manual input of the FM radio frequency, and a set of EQ presets.

https://x1l3.bigcartel.com/product/zxxn-radio-eurorack-module


submitted Today, 09:20 by SardonikGrin
