Dimensions
4 HP
30 mm deep
Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price
$139 Price in €

This Module is discontinued.

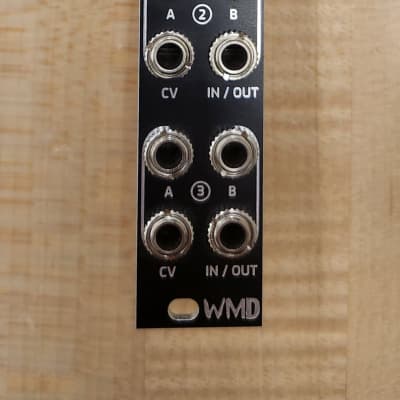

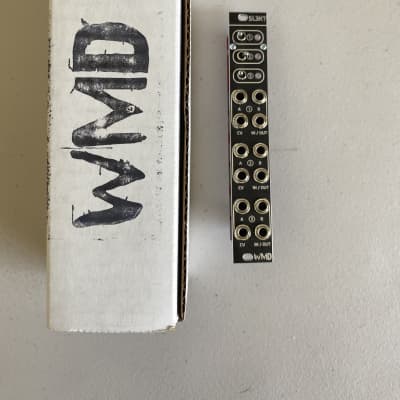

3-channel, bi-directional switch

SL3KT (pronounced "Select") is a simple three-channel switch module for Eurorack modular synthesizers.

Three independent, two-way switches allow to select between different sources or destinations of both CV and audio signals. Useful for many tasks in a Eurorack system such as sequence selecting, CV selecting, boolean logic operations, group switching, group routing, gating, waveform mixing, and so much more.

  • 3 independent switches
  • Bi-direction signal paths allow you switching between two sources or two destinations.
  • Cascaded normalling of the switch position allows users to switch all channels with one switch or CV input.
  • Break the normal by plugging into a lower channel.
  • CV input for each channel lets you move the switch remotely with a gate CV signal.
  • Perfect for setting up complex patches with multiple functions and creating "presets" that are just a switch away.

SPECS:
Size: 4hp
Depth: 30 mm (with cables)
Power: +10mA, -10mA
All CV inputs: 100 kOhm impedance
A/B/IN/OUT: 20 ohm impedance, bi-directional
Voltage drop on 1V/Oct signals negligible.
