Dimensions
12 HP
30 mm deep
Current Draw
70 mA +12V
35 mA -12V
0 mA 5V
Price
$299 Price in €

This Module is currently available.

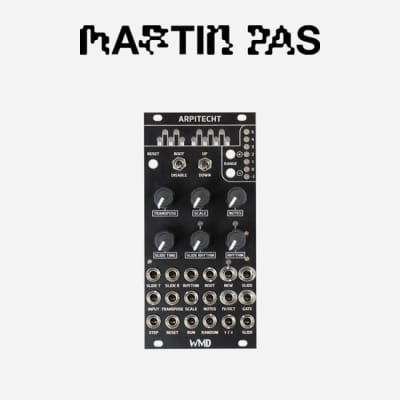

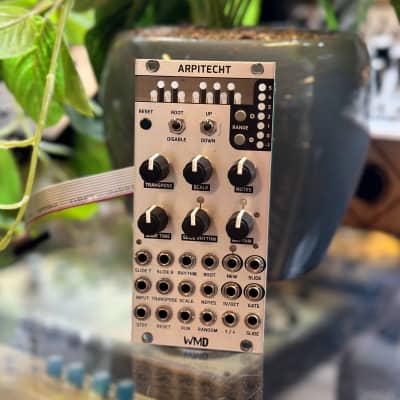

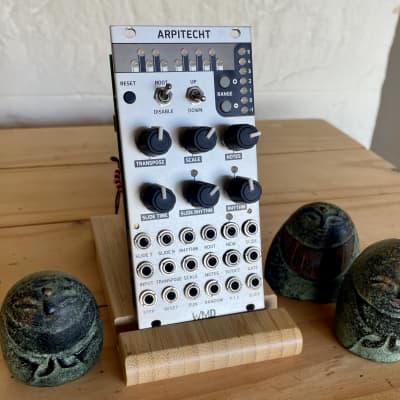

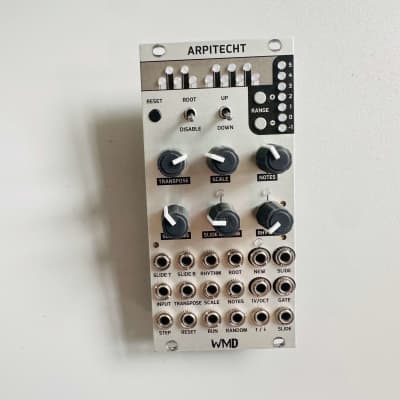

Quantizer and Rhythmic Arpeggio Generator

Arpitecht is a voltage controlled quantizer and rhythmic arpeggio generator. As one of our most musical modules, Arpitecht is designed to be an inspiring tool for the modular musician.

With Arpitecht you can create intricate melodies span 8 octaves, imply chord changes, instant acid basslines, evolving generative sequences, and, using the Triad expander, polyphonic chord generation.

Arpitecht features 16 scales, each with a unique set of "note masks" offering hundreds of note combinations with the ability to dial in via knobs on the front panel or CV. 32 rhythm patterns and 32 slide patterns all with CV control let you feed a static clock into it and get unique, evolving patterns of gates and note changes.

Triad expander module allows you to create uniquely voiced chords in the same key underneath your arpeggios.

Voltage controlled Quantizer and Arpeggio Generator.
16 scales
Hundreds of note combinations possible
Inspiring to creativity and easy to "land" somewhere new
8 octave range
Intuitive front panel and "keyboard" LED layout
Rhythm and Slide Rhythm options for added variety to your arpeggio

Manual

https://cdn.shopify.com/s/files/1/0977/3366/files/Arpitecht_1.pdf?12511445219481612922
