10HP multi-engine stereo DSP: effects, dual VCO, looper & sampler

COLIBRÍ is a 10HP multi-firmware digital module from WilaModules. One compact stereo DSP platform that runs dedicated firmware personalities — effects, dual VCO, looper, and sampler — so you can swap workflows without filling your rack with separate modules.

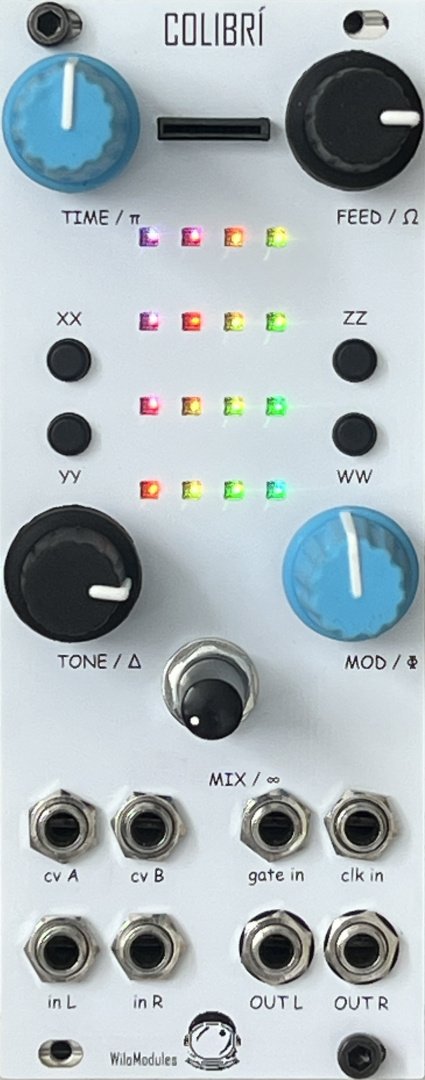

PANEL (10HP)
• 5 potentiometers with context-dependent labelling:
– TIME / π
– FEED / Ω
– TONE / Δ
– MOD / Φ
– MIX / ∞
• 4 tactile switches (XX, YY, ZZ, WW)
• 4×4 RGB LED matrix for mode, status, and visual feedback

AUDIO
• Stereo inputs: IN L, IN R
• Stereo outputs: OUT L, OUT R

CV / SYNC
• CV A, CV B (function depends on active firmware)
• Gate in
• Clock in

FIRMWARE ENGINES
• Effects — stereo DSP (time, feedback, tone, modulation, mix)
• Dual VCO — two oscillators with interval, detune, harmonic/semitone modes, and LED waveform display
• Looper — audio capture and loop playback
• Sampler — sample playback and manipulation

The front panel is designed for performance: pots and switches change role per firmware, and the RGB matrix gives immediate visual context. COLIBRÍ is meant as a flexible DSP core for small systems — one module, multiple tools, expandable through firmware updates.
