22 HP
20 mm deep
Current Draw
120 mA +12V
10 mA -12V
0 mA 5V
$421 Price in €

This Module is currently available.

Specs are approved by the manufacturer

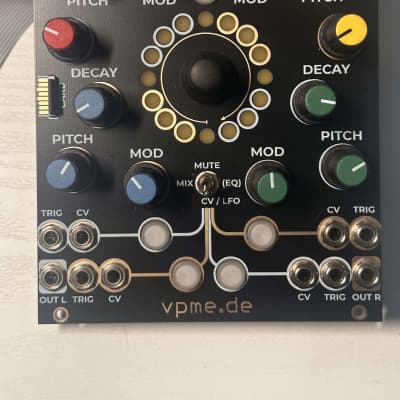

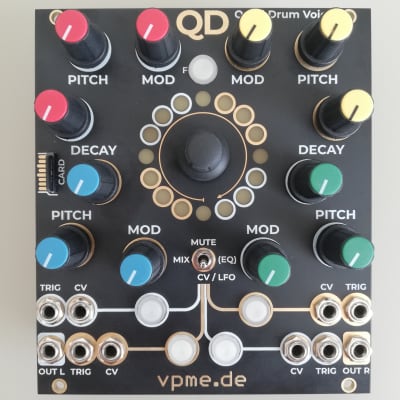

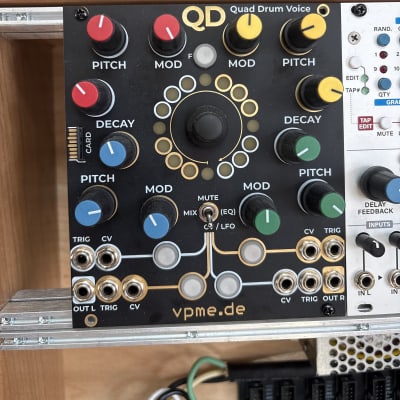

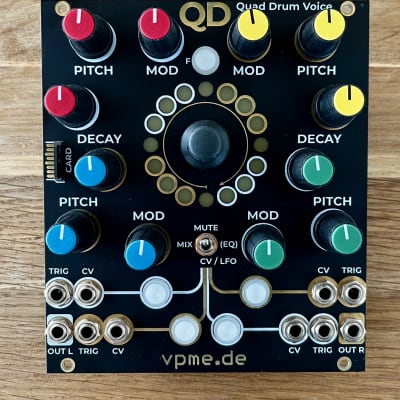

Quad digital drum voice with internal mute/panning mixer and flexible CV routing

  • 4 digital drum voices in a 22hp compact module
  • every voice can be a sample player, a wavetable VCO or a digital drum model
  • control of pitch, decay and sample selection per voice
  • uSD card slot, up to 1024 samples total, up to 128 samples per drum voice under CV control
  • digital models offer range of kicks, snares, hats, strings and other percussive sounds
  • 4 trigger inputs
  • 4 assignable CV inputs
  • 4 mute buttons and a very intuitive and powerful control interface
  • 4 internal LFOs or mod envelopes than can be synced to triggers
  • internal 4 channel mixer, 2 output channels
  • internal 3-band equalizer and compressor


Ø 4.74 (53 Votes) Average Rating
submitted Apr 24th 2018, 13:18 by av500 | last Change Oct 9th 2019, 22:46 by av500
