Dimensions
8 HP
25 mm deep
Current Draw
5 mA +12V
5 mA -12V
0 mA 5V
Price
$170 Price in €

This Module is currently available.

Specs are approved by the manufacturer

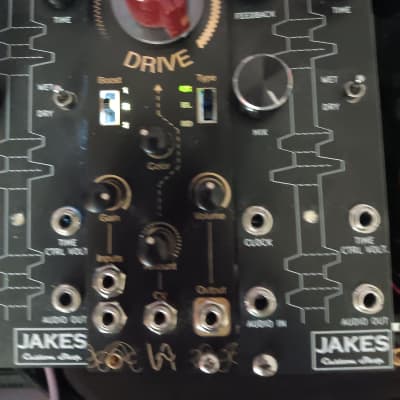

LEDs & Germanium Diode OverDrive

LedRover is a multi diode overdrive module that adds complexity and harmonic richness to any signal.
Three types of diode clipping modes are avaliable:
* Red LED for a compressed drive that is rich in harmonics.
* Blue LED for a punchy & crunchy Drive.
* Germanium diode for a more vintage overdrive.

Technical Specifications

Custom made Drive potentiometer with 300 degrees rotation allows for more fine control and higher resolution of the drive amount.
Three bass boost levels.
Drive CV input with attenuator for external control of the drive.
Drive "Color" - changes the drive brightness.
input gain amplifier for pushing the drive to it's limits.
Dual input with gain amount.
Noise filtering and resettable fuses on the module's power input.
Reverse current protection.

https://voicas.audio/products/ledrover


Ø 4.33 (6 Votes) Average Rating
submitted Feb 17th 2019, 15:59 by VoicAs | last Change Nov 4th 2019, 19:04 by VoicAs

36 Users are observing this
