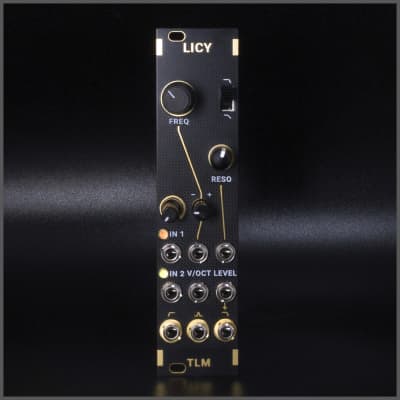

LICY (6HP Ripples 2)

LICY is our 6HP version of the Mutable Instruments Ripples V2

TLM Audio introduces the classic mutable series.

LICY is based on the Mutable Instruments Ripples 2 module with a smaller form factor (6HP).
It is built, calibrated and tested with the highest quality standarts.
The Module is built and assembled in germany and comes ready installed with the newest firmware.

Features

A multimode filter
High-pass, band-pass, and low-pass outputs.
Switchable slope control for the band-pass and low-pass outputs. The slope of the high-pass output varies with resonance.
The low-pass output goes through an internal VCA - the perfect "end of subtractive chain" output!

All the CV inputs you need
Un-attenuated frequency CV, calibrated for 1V/Oct tracking of the self-oscillation tone over 4 octaves.
Frequency CV with attenuverter.
Resonance CV. Self oscillation starts at 4V. Control voltages above 5V are non-linearly compressed, for fine control of resonance overdrive.
VCA level for the low-pass output.

Specifications
Cutoff knob range: 20Hz to 20kHz.
Fully analog, based on the V2164 low noise/distortion quad VCA chip, and LM13700 OTA for that extra bit of non-linearity.
Frequency CV inputs impedance: 100k.
Audio input impedance: 100k.
Resonance input impedance: 22k.
VCA level input impedance: 39k.
All CV inputs handle audio-rate modulations.
