Buffered multiple

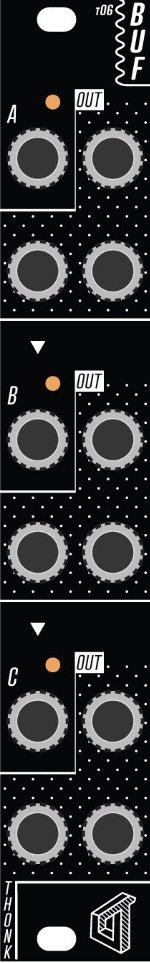

BUF is a Eurorack precision multiple, featuring three channels of 1 IN > 3 OUT buffered multiplication. This is a super useful module for duplicating CV or audio signals to send to many destinations in a modular system.

The input of each channel is normalled to the next channel below it, allowing for flexible routing such as: 1 IN > 9 OUT, or 1 IN > 6 OUT and 1 IN > 3 OUT.

Each channel has an bipolar LED indicator to represent the input voltage – orange = positive, white = negative.

Features:

• Three channels of precise buffered multiplication.
• Each input normalised to the channel below.
• Bipolar LEDs to indicate voltage polarity
• Designed in-house at Thonk

Specs:

• Width: 4HP
• Depth: 25mm (including power connector)
• Power: +12V 15 mA, -12V 15 mA
