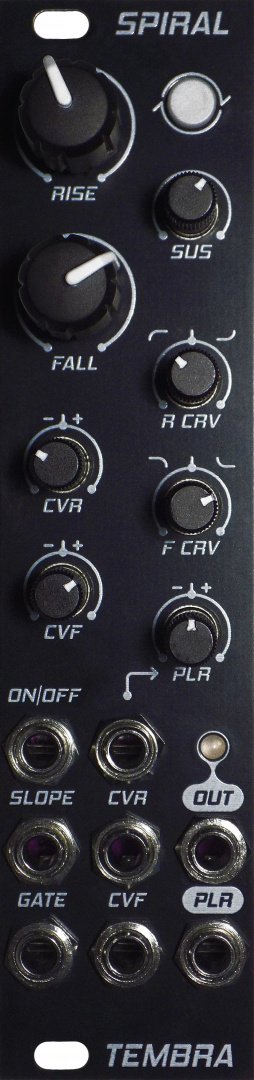

VC Envelope Generator

1. Controls
   RISE\FALL - manual controls for the rise-fall time
   SUS - manual controls for the sustainable phase
   R CRV \ F CRV - manual control of the rise and fall curve: all the way to the left is logarithmic, the center is linear and all the way to the right is exponential
   PLR - manual polarizer controls, all left PLR output is inverted relative to OUT, all right PLR output is equal to OUT
   BTN - activates looping mode, in this mode input ON|OFF don`t work

2. INPUT-OUTPUT
   SLOPE - slew limiter input
   GATE - gate or trigger input
   CVR\CVF - attenuverted CV inputs for RISE\FALL function
   ON|OFF - if nothing is connected, the function generation is active, if the jack is connected, an input signal from +1V activates the function generation, otherwise it is disabled
   PLR - polarizer CV input

CV LEVEL: -10V to +10V
POWER CONSUMPTION: +12V 30mA , -12V 25mA
MODULE WIDTH: 6 HP
MODULE DEPTH: 25 mm
