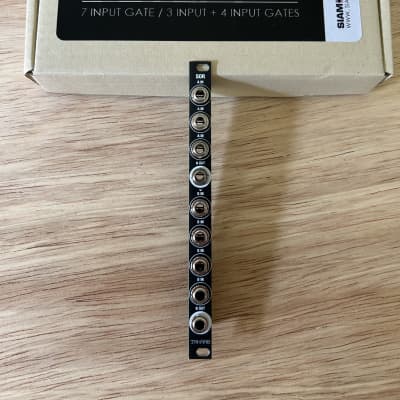

SOR

Switched Passive Logic OR Gate

Part of the Takaab range of modules by Siam Modular.

A simple logic OR gate for use combining clock and/or gate signals. The signal path is normalised to act as a single 7-input gate or two separate gates with 3 inputs and 4 inputs. As it is passive there is a small voltage drop or 0.7v.

Size: 1cm (2HP) x 128.5cm x 1.8cm.

Module depth: 1.4cm.

Package contents: 1x module, 2x M3 screws.
