Dimensions
12 HP
30 mm deep

Module is a 1U tile in Intellijel format

Current Draw
20 mA +12V
20 mA -12V
0 mA 5V
Price
$70 Price in €

This Module is currently available.

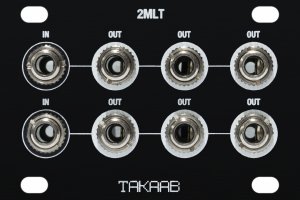

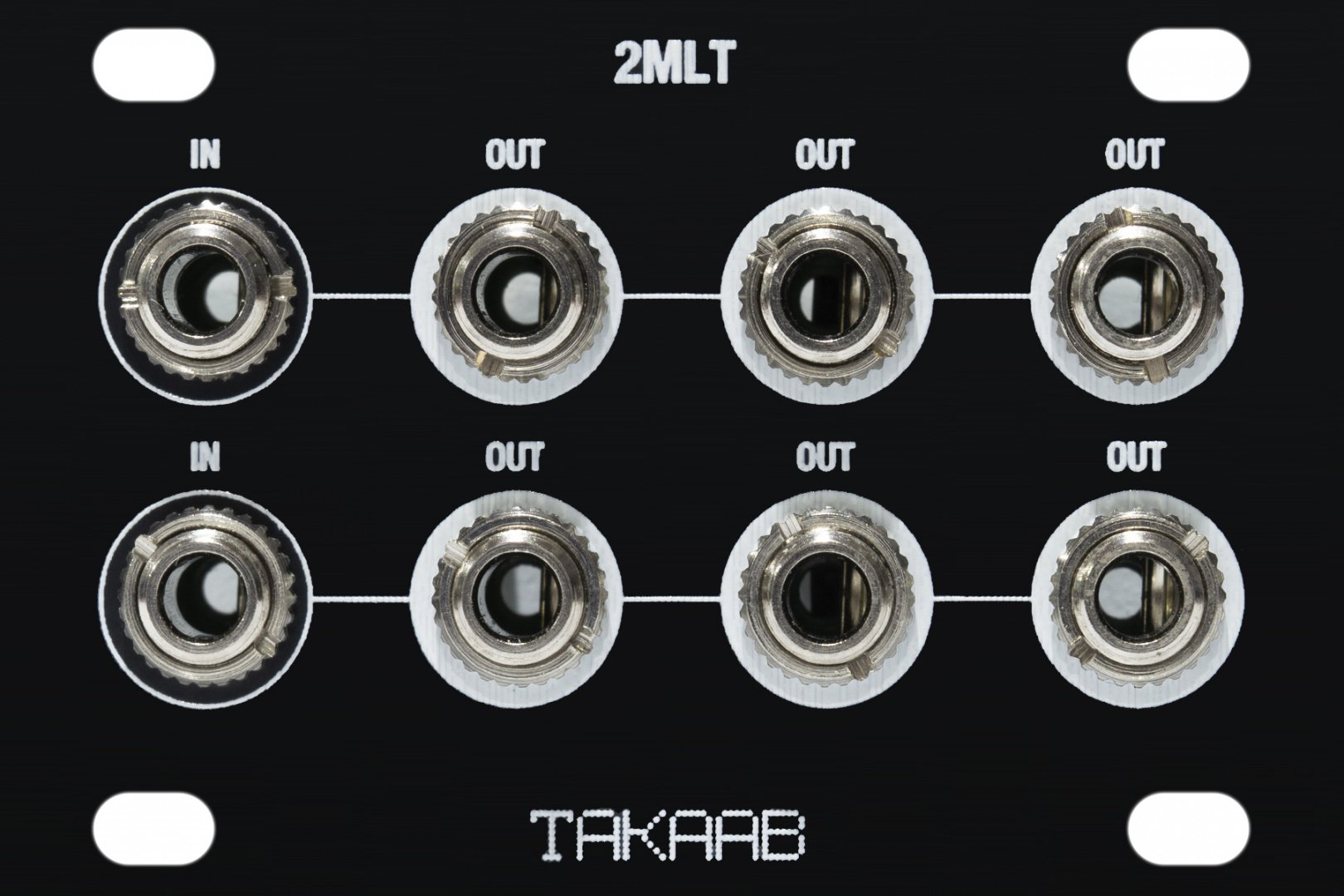

Dual Buffered Multiple

Precise and compact 1U*12HP multiple, based on a pair of low-offset, high quality audio op amps.

Two individual "1 in 3 out" buffered signal splitters. Use whenever you need to split a signal without any voltage or level drop, for instance to route a 1v/octave CV to three oscillators. Each of the inputs connects to three outputs at the same level. The signal of gate 1 is also normalized to the input of gate 2, meaning that without a jack insert into the second input the unit will function as a 1 in 6 out multiple.

https://siammodular.com/products/takaab-2mlt-1u-dual-buffered-multiple-eurorack-synthesizer-module


submitted Jun 6th, 06:15 by Bobfries | last Change Jun 6th, 08:06 by MoltenReplica
