Dimensions
2 HP
25 mm deep
Current Draw
40 mA +12V
38 mA -12V
0 mA 5V
Price
$70 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

Headphone Mixer

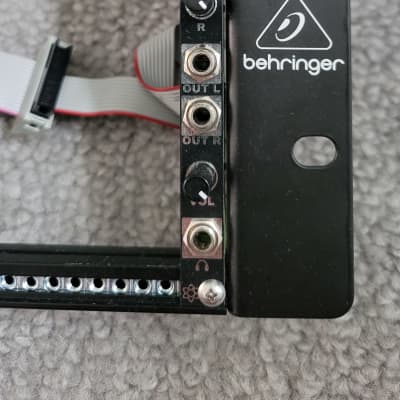

The Head Out module has stereo line level outputs and a stereo headphone output. The line level L and R outputs have attenuators, and are intended to accommodate hifi/pro audio equipment. The headphone output utilizes a 2164 VCA-based circuit, allowing for plenty of volume.

The headphone circuit operates independently of the line level circuit, so all outputs can be used simultaneously.

If you choose the kit, it's a "finish it yourself" kit. The board comes pre-populated with all the surface mount components already.

Features:
- L and R input (L input normals to R input)
- L and R line level outputs with attenuators
- Attenuation trimmer (to set max output of stereo headphone jack )
- Stereo headphone output with attenuator
