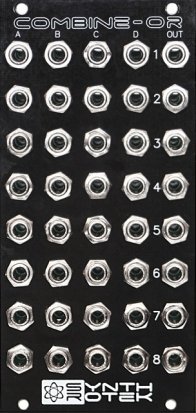

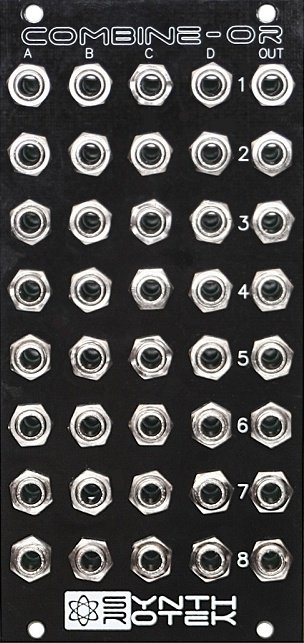

Duplicate. K-M-COR Combine-OR Eurorack OR Combiner Module

Need more OR? The Combine-OR is an 8 channel OR-Combiner with 4 inputs and 1 output per channel. The Combine-OR allows the user to combine gates, triggers and other logic signals into a single combined OR output.

https://www.modulargrid.net/e/synthrotek-combine-or

Need more OR? The Combine-OR is an 8 channel OR-Combiner with 4 inputs and 1 output per channel.

The Combine-OR allows the user to combine gates, triggers and other logic signals into a single combined OR output.

There are 8 numbered rows that can be daisy-chained in order to input many multiple logic sources, resulting in complex gate or trigger outputs.

This is a passive module and thus does not need a voltage connection or power cable. The passive diodes produce a slight voltage drop between the input and the output of each channel. As a gate combiner it will combine 2 to 4 gate inputs to produce an OR function on the output. When combining CVs the highest positive input will appear at the output with about 0.7 volts of drop.

The Combine-OR is available as a fully assembled module or in kit form. This kit can also be used to make an 8-channel 1-to-4 passive mult.

Specs:

• 12HP
• Power Consumption: 0 mA
• Module Depth: Approx. 5/8 inches
