Dimensions
28 HP
28 mm deep
Current Draw
100 mA +12V
60 mA -12V
0 mA 5V
Price
$299 Price in €

No info about availability.

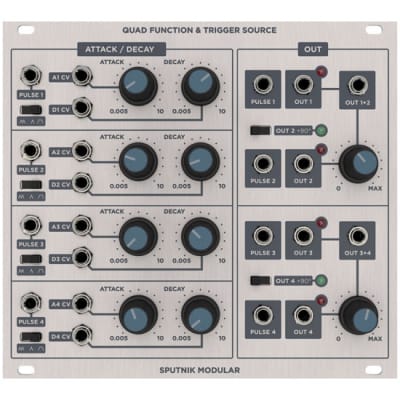

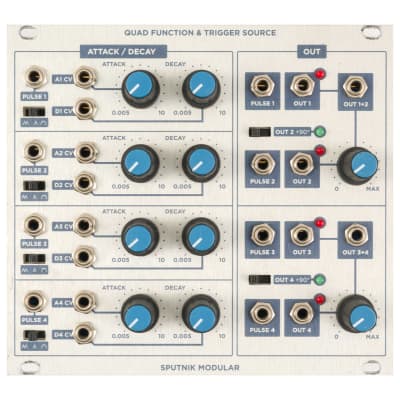

Quad function generator a la Buchla 281.

SPUTNIK QUAD FUNCTION & TRIGGER SOURCE provides four independent or paired (quadrature mode) function generators for creating complex envelopes.
ATTACK AND DECAY
4 generators
The time range of each generator (.005 – 10 seconds) can be controlled via CV pulse input jacks for both attack and decay + control knobs
3-mode switch per generator: CYCLE (LFO), TRANSIENT, SUSTAINED
OUTPUT
Each generator includes CV output + pulse output that generates a transient pulse at the end of the decay segment: if the generator is in CYCLE mode for instance, that cycle will repeat
QUADRATURE MODE SWITCH with green LED: when engaged, 1+2 (or 3+4) work in tandem + a shift of 90 degrees to each other. These pairs can then be linked creating complex ADSR envelopes.
Dedicated outputs for 1+2 and 3+4 as well as attenuator knobs for mixing channels.

http://sputnik-modular.com/quad-function-trigger-source/


Ø 4.70 (10 Votes) Average Rating
submitted Jun 16th 2014, 00:15 by ym2612 | last Change Jul 31st 2017, 08:18 by analogdarkside

17 Users are observing this
