This Module is a prototype or in a concept phase.
Specs are approved by the manufacturerCompact Multiple

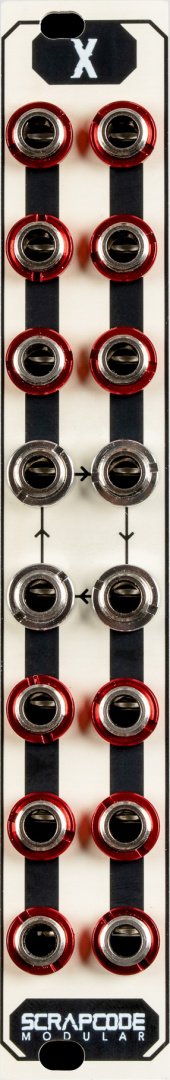

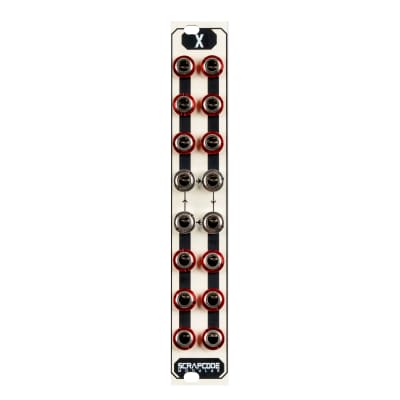

This module is a passive multiple which allows for a signal to be split between up to twelve outputs.
The inputs are normalled, meaning that when a patch cable is plugged in it will break the connections between its own set of outputs and the rest of the module.
Various mult configurations can be achieved:
• A single 1x12
• Two 1x6
• Four 1x3
• One 1x6 and two 1x3
For more information please see the Quickstart Guide here.
