16 HP
25 mm deep
Current Draw
52 mA +12V
9 mA -12V
0 mA 5V
$450 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

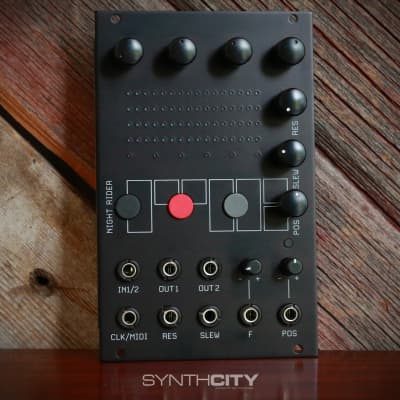

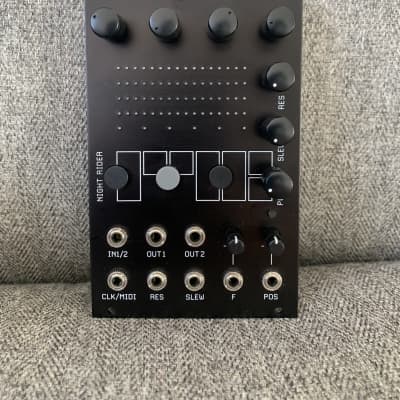

Quad Sequential Resonator

A sequencer and a filter-bank got together . . .
. . . a love child was born !

Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer

Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun
NIGHT RIDER cleverly turns the dials to where you want them, when you want, via its unique four channel modulation sequencer

Create dreamy swooshing 70’s phaser filter sweeps
Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus-Strong twangs, and pinging filter pings !

Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

Frequency range - from rumble to wispy
Resonance/Feedback range - from tame to insane
Individual Filter levels - silent to beyond 11, for serious saturation-clipped sonic destruction

Four filter blocks, with multiple models , including:
6db BPF [ pingable ]
12db BPF [ pingable ]
12db variable width BPF
Comb Filter for Karplus-Strong [ pluckable & flanger vibes ]
All Pass filter [ crazy Phaser vibes ]

Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]

Modulation Sequencer capable of being clocked, scanned, and interpolated

CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount, Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC

Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups


Ø 4.00 (4 Votes) Average Rating
submitted May 13th 2023, 16:16 by Spookyswirls | last Change Apr 12th, 13:57 by ParanormalPatroler
