28 HP
25 mm deep
Current Draw
220 mA +12V
30 mA -12V
0 mA 5V
$999 Price in €

This Module is currently available.

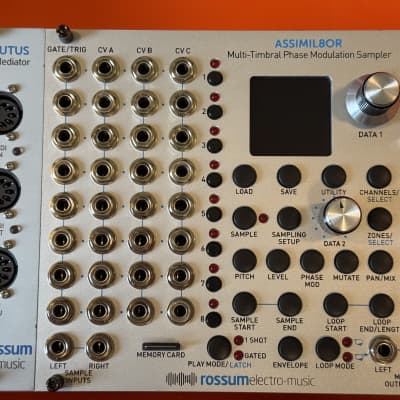

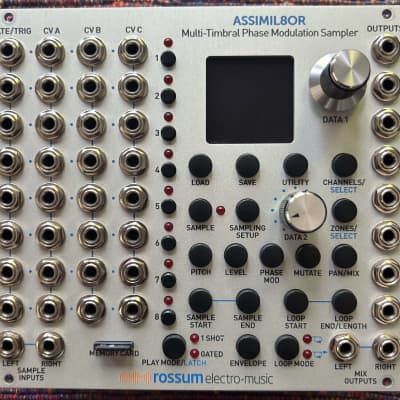

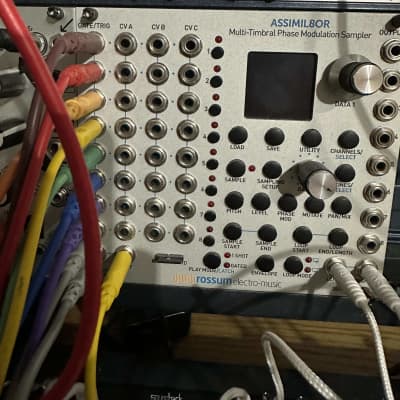

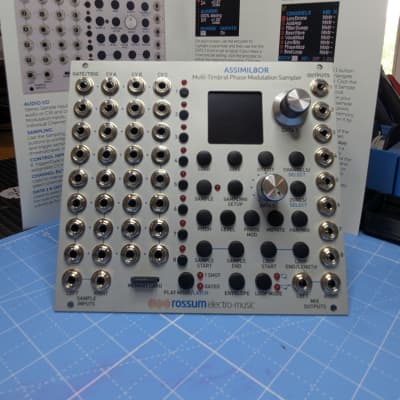

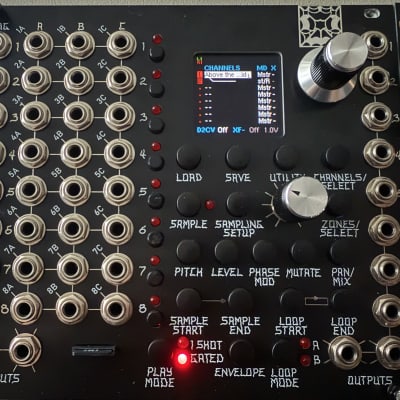

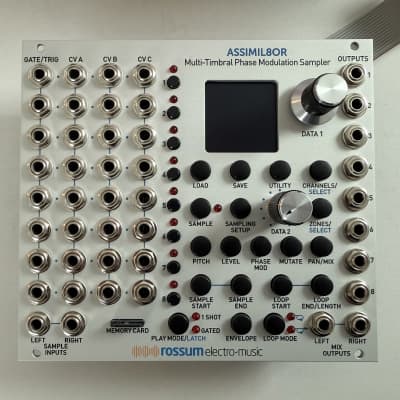

Multi-Timbral Phase Modulation Sampler

Designed to provide a powerful, flexible sampling engine for modular synthesis, the ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum’s decades-long pioneering of affordable professional sampling technology.

ASSIMIL8OR provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.

Key ASSIMIL8OR features include:

  • Eight-channel multi-timbral operation. Each channel will be available from its own independent output as well as appearing in the stereo mix output.
  • Superb 24-bit A/D and D/A conversion.
  • Mono or stereo sampling. Channels can be configured as eight mono voices, four stereo voices, or any combination. (Well, any combination that adds up to eight).
  • The ability to assign up to 8 samples to each channel and select between them in real time via CV.
  • DC coupling through the signal path for sampling of control voltages.
  • Unique timbral capabilities with the ability to phase modulate samples by external analog signals or by other samples (a first, we believe).
  • Variable sample fidelity with independently selectable sample rate and bit depth.
  • Real-time CV control of bit depth.
  • Real-time CV control of aliasing (from virtually none to lots).
  • Extensive sample manipulation and looping capabilities.
  • Sample scrubbing under CV control.
  • One-shot or gated sample playback with variable attack and release times.
  • Gate/trigger inputs and CV inputs for each sample that can be assigned independently for each channel to virtually any sample parameter. Examples include:Pitch
    Bit Depth
    Phase Modulation
    Sample Start
    Sample Length
    Loop Start
    Loop Length
    Release Time
  • A front panel accessible SD card for sample and preset storage.
  • And a lot more…

Assimil8or Specifications

2,300 seconds at 48kHz mono, freely allocatable between the 8 channels


48kHZ, 96kHZ, 192kHZ

A/D & D/A

24 Bits


32 Bits


100 microseconds at the Mix Outputs

180 microseconds at the Individual Outputs


Sample L/R

2x 3.5mm mono socket

100kΩ Input Impedance

Gate/Trigger 1-8

8x 3.5mm mono socket

100kΩ Input Impedance

1.6V threshold

Control Voltage A 1-8

8x 3.5mm mono socket

100kΩ Input Impedance

96 kHz sample rate

Anti-alias filtered to 20kHz bandwidth

Control Voltage B&C 1-8

16x 3.5mm mono socket

100kΩ Input Impedance

48 kHz sample rate

No anti-alias filtering


Mix Outputs L/R

2x 3.5mm mono socket

1kΩ Impedance

Individual Outputs

8x 3.5mm mono socket

1kΩ Impedance


+/-12V via 16-pin, Doepfer-style connector


220mA +12V, 30mA -12V


28HP (W); Panel to power connector (with connector plugged in) 25mm (D)


1x Micro SD card
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide
