Dimensions
84 HP
45 mm deep
Current Draw
700 mA +12V
0 mA -12V
0 mA 5V
Price
$599 Price in €

This Module is discontinued.

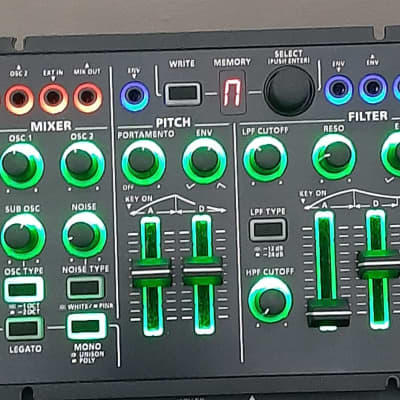

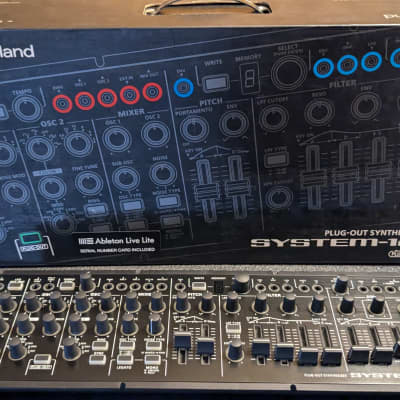

Semi-modular Synthesizer Voice

The SYSTEM-1m is a semi-modular synthesizer with PLUG-OUT capability and a unique design that can be used as a Eurorack module, tabletop synth, or 19” rackmount unit. In addition to being a powerful standalone instrument, the SYSTEM-1m has external inputs and an array of CV/Gate connections that allow it to be re-patched and to interface with other modular synthesizer systems. The SYSTEM-1m’s CV/Gate connections combined with its ability to load classic Roland PLUG-OUT synth models like the SH-101 and PROMARS give it power and flexibility that is simply unparalleled.

  • Semi-modular synthesizer with PLUG-OUT capability

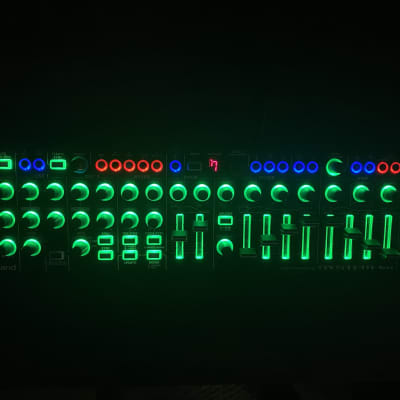

  • 19 color-coded CV/Gate and audio connections with LED lighting
  • 84 HP Eurorack, tabletop and 19” rack compatible using AC adaptor or Eurorack power
  • Versatile oscillators with six waveforms, Crossmod, Ring Mod, Sync and Color control
  • All parameters controlled with high-resolution knobs and sliders with LED indicators
  • External input for processing external signals through filter, amp and FX section
  • -12 dB and -24 dB filter types with independent high-pass filters
  • Integrated tone, crusher, reverb and delay effects
  • Tempo syncing for LFO and delay
  • 24-bit/96kHz audio and MIDI interface
  • AIRA Link for easy connection to MX-1 Mix Performer

http://www.roland.com/products/system-1m/
