Dimensions
14 HP
35 mm deep

Module is a 1U tile in Intellijel format

Current Draw
26 mA +12V
26 mA -12V
0 mA 5V
Price
$133 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Stereo heavy clipping distortion

Too Much Gain? Never heard of that.

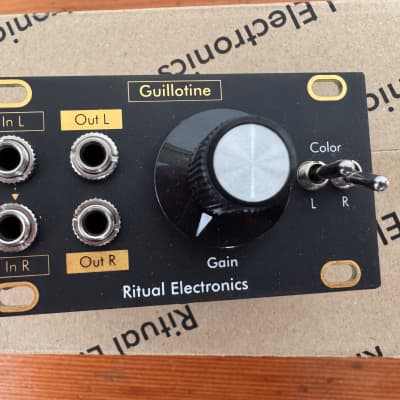

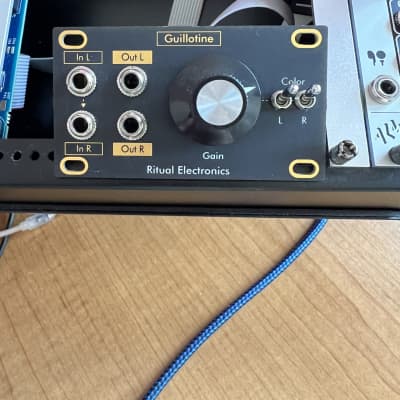

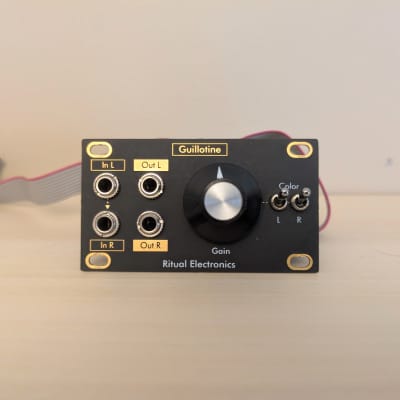

Guillotine is a true stereo hard clipping distortion
in 1U format. Its insane amount of gain can also be
used as an instrument adaptor (guitars, basses,
microphones…) as it can bring line and mic levels to
modular levels. Do not expect it to be clean
though...

Guillotine is two channels of hard clipping distortion with up to
25dB gain. If you process mono signals you can self patch the
module to chain the two channels for 50dB gain. Insane amount
of gain guaranteed.

Guillotine has an internal feedback routing allowing for two
distortion colors per channel. The result is similar to a low pass
filter, but not quite. The lower position gives emphasis on the
low end, the middle position is straight up distortion, with no
coloration & the higher position emphasises on the high
frequency content.

Controls:
• Gain knob up to +25dB
• 3-position color switch for each channel

Technical characteristics:
• True stereo hard clipping distortion
• Two internal routings for more distortion colors

Current consumption:
+12V: 26mA | -12V: 26mA | +5V: 0mA

Size:
1U | 14HP | 35mm deep

Available with either Intellijel 1U or Pulp Logic 1U Tile faceplate.

https://www.ritualelectronics.com/products/1u-guillotine


Ø 4.45 (11 Votes) Average Rating
submitted Apr 27th 2020, 15:19 by Terdjman | last Change Feb 5th, 14:37 by Terdjman
