Dimensions
14 HP
35 mm deep
Current Draw
36 mA +12V
66 mA -12V
0 mA 5V
Price
$258 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

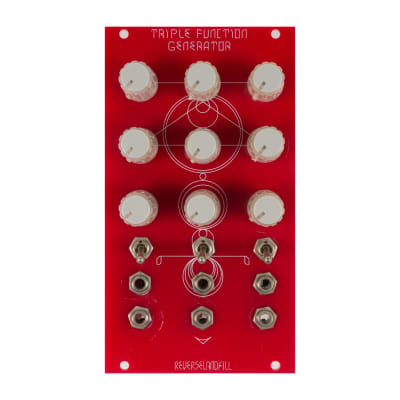

Triple Function Generator

3 channel video colorizer / shaper

This module is based on schematics by D.Sandin & L.Larsen
I picked up this project because the pcb’s are not available anymore.
The Function Generator is a very useful module to have in a (DIY) video setup.
You can adjust the “Lights” , “Mids” and “Darks” in the input signal.
Effectively it works a bit like an equalizer, but you can also go negative. This will get you solarised effects.

I setup the design to work as a triple colorizer, as the Cadet system has black & white video input.
With this module, you can easily recolor the incoming images.
The inputs can be normalled together to achieve this. (there are connection pads on the pcb’s)
Feedbacking this and through module will also give cool results!

This module needs a video LZX system environment. So a Sync generator + RGB Encoder as a minimum.

Video example:
https://www.reverselandfill.org/video/triple-function-generator-video/

Buy it on Etsy:
https://www.etsy.com/shop/ReverseLandfill

https://www.reverselandfill.org/diy/triple-function-generator-project/
