StudioKAT - Toolbox

Multi Utility tools

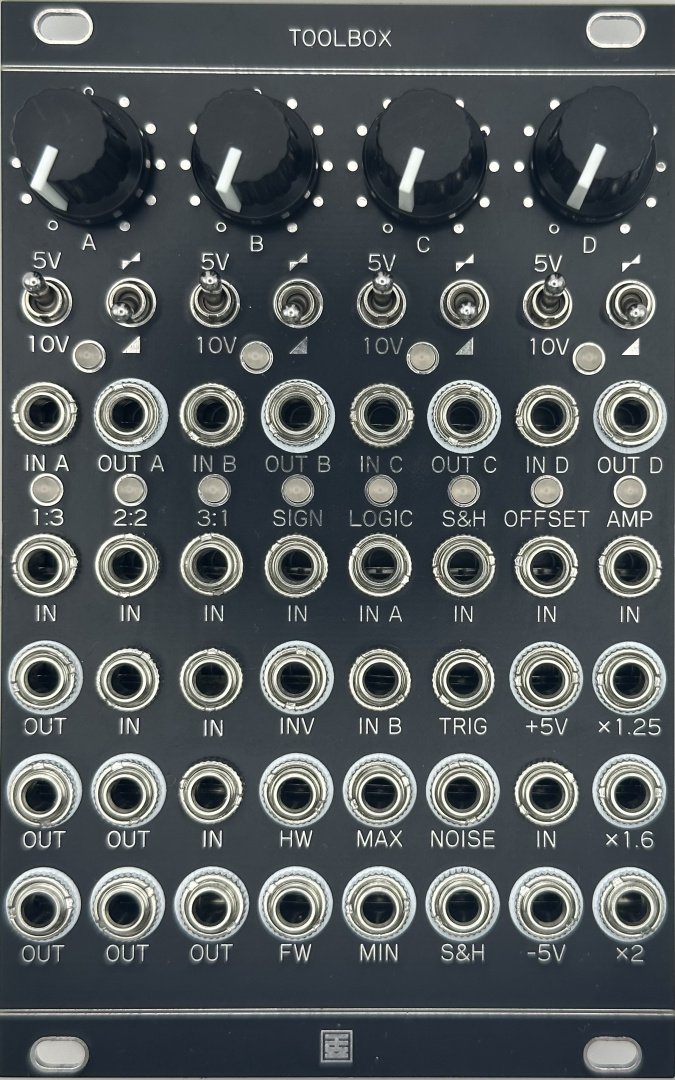

Toolbox is a multifunction utility module that packs a wide range of essential modular synthesis tools into a compact 16HP format.
It is based on Mutable Instruments' Shades, Links, and Kinks, with several added original features.

Key features include:
- Audio/CV mixer (for both addition and subtraction)
- Offset(5V/10V) and polarity inversion for CV signals
- 1:3 buffered multiple
- 2:2 unity mixer
- 3:1 averaging mixer (each channel gain = 1/3)
- SIGN section: inverter / half-wave rectifier / full-wave rectifier
- LOGIC section: analog OR / analog AND gates
- S&H section: sample & hold circuit / white noise output
- OFFSET: 5V offset converter for ±5V ↔ 0–10V signal conversion
- AMP: amplification of CV and audio signals
- 8V → 10V (x1.25)
- 5V → 8V (x1.6)
- 5V → 10V (x2)

【Spec】
- Format: Eurorack
- Function: Multi tools
- Current needs: +12V: 160mA, -12V: 160mA
- Width: 16 HP
- Depth: 25mm (including power connector)

Official Store : https://www.studiokat.jp/items/106541624
Github : https://github.com/StudioKAT/Toolbox
