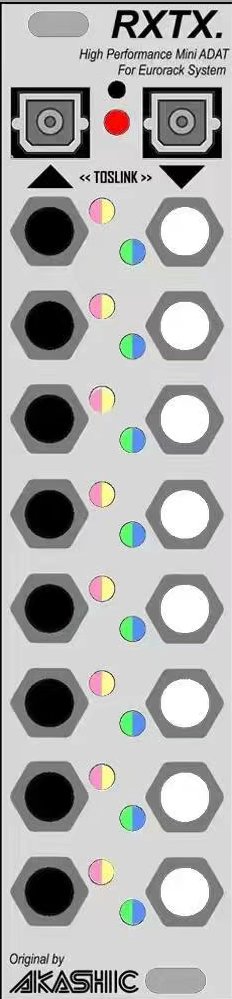

High Performance Mini ADAT for Eurorack System

本产品由中国Akashic团队，Rux王设计与组装。
This product is designed and manufactured by Rux Wong, the Akashic Modular team from Harbin, China.

RXTX是专为Eurorack系统设计的高性能ADAT数模转换器
High Performance Mini ADAT for Eurorack System

3U 6hp+12v:390ma -12v:90ma+10v(20Vpp)
in/out10vpp to -6dB
16/24bit 44.1khz/48khz

时钟从模式
Clock mode: Slave

四个拨码开关对应四对输入通道的交流耦合滤波,开关打开时启用直流输入
AC filtering switchesfour pairs of inputs ON for DC couple.

直流/交流输入AC/DC in8PCM42024
Dynamic Racnge:118dB A-Weighted
THD+N:-105dB(20Vpp to 6Vpp)
输入阻抗/Input Resist:100KΩ
数字信号底噪(音频)Noise Floor(Audio):-90dB to -80dB

直流耦合输出DC output8PCM17944
Dynamic Racnge:127dB
THD+N 0.0004%(4.5Vrms to 20Vpp)
