Module is available as a DIY project only.
This Module is a prototype or in a concept phase.
Sequenced voltage memory capable of storing 32,768 static voltages

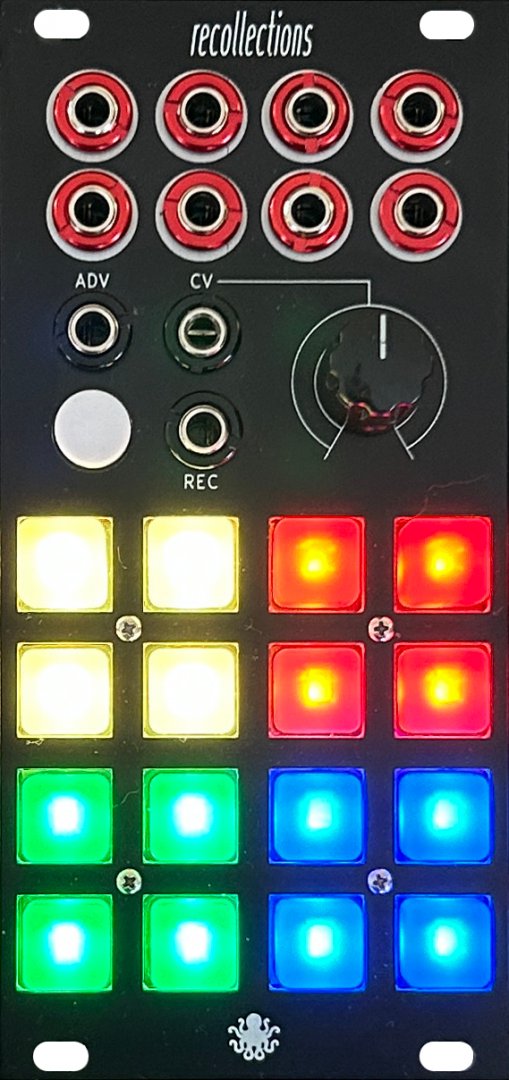

Recollections is a voltage memory module, capable of recording, saving and recalling up to 32,768 voltages. It may be used as a sequencer, a controller, a sample-and-hold, a track-and-hold, a static voltage sampler or a random voltage generator all at the same time. Outputs may be configured to be gates or control voltage. All 8 output channels produce their stored voltages whenever one of the 16 presets is selected.
The 16 presets comprise a bank, and 16 banks may be recalled instantly from the module's internal memory. Further, the 16 banks comprise a "module" and 16 modules may be recalled from the micro SD card.
While offering extensive functionality for its size, Recollections is rooted in a simple and intuitive user interface based on color. Various "screens" are represented on the 16 illuminated elastomer keys, and navigation is quickly achieved with not more than two layers of hierarchy extending from a central navigational screen.
Voltages are sampled and recalled from memory as 12-bit values, offering a granularity of 4096 voltage levels. By default, Recollections produces unipolar voltages between 0v and +5v.
However, with the optional Voltage Range Backpack Board, the output range may be scaled to be bipolar, or any range between -10v to +10v, including the 0v to +1v range more appropriate for video systems.
