This Module is currently available.
Eurorack powered MIDI Controller with USB C, TRS A and header pin outs.
For sale at the Timbre Industries Co Etsy shop!

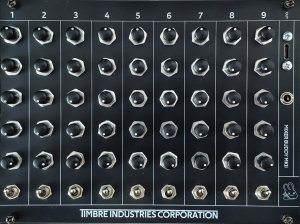

Mixer Buddy is a 34HP MIDI controller in Eurorack format. It is designed to be the partner in crime of Eurorack modules with a USB host function, or a PC. Examples of these are the 1010 Music Bluebox, Expert Sleepers FH-2 and the Westlicht Per|Former. It’s a perfect companion to control a mixer. It has 45 knobs and 9 switches in 9 rows. Each row is controlled by it’s respective MIDI channel number and cc messages 0 to 6. On request, I can either change these numbers before sending or send the Arduino IDE file with it to edit it yourself.
You can connect the Mixer Buddy in several ways: it has MIDI out through USB C and MIDI TRS type A on the front panel, and headers for a breakout module, or for example the ES FH-2 and Micro USB directly to the Teensy board on the back.
The module depth is 3.2 cm. The module draws +12V power from an Eurorack power supply. It does not draw power from the USB connection, it will not function without a 10 pin header to Eurorack power.
Included in the box is the module, four Befaco Knurlies and a 10 to 16 pin power cable.
