Luma-mu

Single Luma-1 Drum Channel

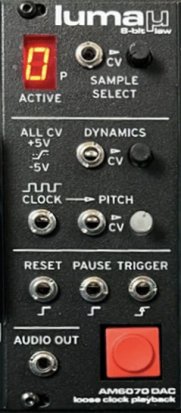

Luma-mu is a 10HP Eurorack module, essentially a single drum channel of Luma-1 which holds multiple sounds in its ROM. It plays samples digitally without microcontroller or software used, which guarantees the lowest latency and highest response of its 8-bit mu-Law DAC. It’s perfect for Luma-1 expansion or standalone operation.

Luma-mu feature set:
* 8-bit mu-law EPROM playback, exact copy of LM-1/Luma-1 channel
* Removable EPROMs with 8 sounds on each, 16KB each (~1.5sec/ea)
* True digital playback with no microcontroller or software involved, order of nanoseconds response time to the first sample
* CV control for sound select allows playing various sounds at each step
* CV control for Pitch and Dynamics
* Gate control for Reset, Pause and sample Trigger
* Can be clocked externally
* Ability to play one shot samples or looped sounds to use it with perfectly looped waveforms as a wave oscillator
* Comes with a software to make your own EPROMs
* EPROM is accessible from the front with optional Luma-mu Reacharound extender module
* Eurorack 10HP, 50mm depth

Luma-mu design at the final stage. We’re working on mass manufacturing now. ETA ~ 2 months. MSRP is $279.
