Clock & Divider

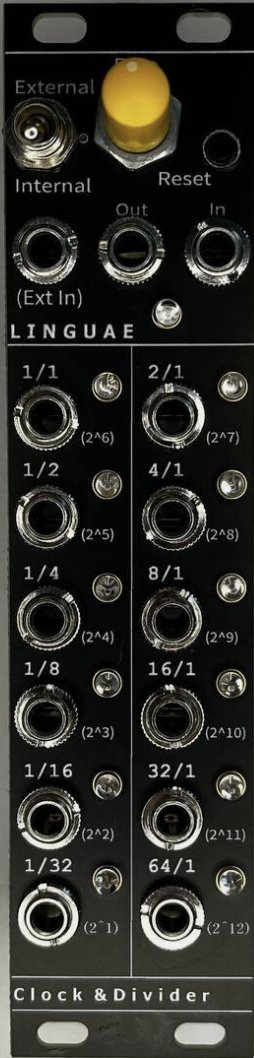

Linguae Devices: Clock & Divider
6HP
This module is a binary/power-of-two, clock divider - with internal and external clock sources.
External resets, chain to the reset output.

Inputs --
- External clock Source
- External Reset (And as well, a button)

Outputs
- 12 gate outputs
- Reset output

 Each gate is relative to a power of two. (Binary counter) So as to be relative to typical note and bar lengths.

---Clock Source selection via switch.

Specs
- External Clock Input --- needs minimum of ~8.5 volts to register a signal, so 5v inputs won't trigger.
- Reset Input --- Anything marginally (>0.7v) above ground.

  • Gate outputs - High: ≥9.4v, Low: 0v
  • Reset output - High: 11v, Low: ~0.12v

Clock has a large range of tempos.

This Module has Yellow LEDs for the gate outputs, and a blue LED for the reset indicator.
