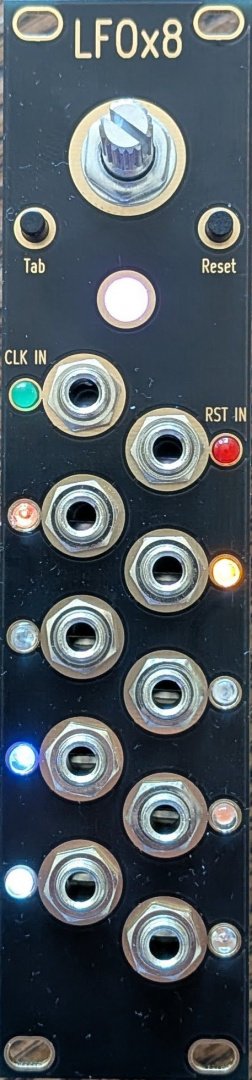

8 LFO Modulator Clock sync Tab

Each of the 8 LFO outputs (0-5V) is visualized by a different LED color.

Each of the 8 LFOs can be individually adjusted.

Interface & Navigation:

Channel Selection: A short press of the encoder cycles through the 8 LFO output channels.

The RGB LED indicates the active channel with a specific color (1-8).

Tempo Input: Via the TAP button or an external signal at the CLOCK IN.

Waveform Selection: Press and hold the encoder while turning it.

1. Sine Wave
2. Triangle Wave
3. Sawtooth (Ascending)
4. Sawtooth (Descending)
5. Square Wave / Pulse Wave
6. Staircase Wave
7. Staircase Wave (Up and Down)
8. Sample & Hold (S&HSynced)
9. Trigger / Bouncing Ball

Operating Modes:

Each channel operates in one of two states. A long press (1 second) of the rotary encoder changes the mode for the selected channel.

A. Sync Mode (LED is solid):

The modulator is fixed to the master clock grid.

Turn encoder: Adjusts the time factor (division/multiplication) from /16 to x16.

B. Edit Mode (LED flashes):

Allows access to mode-specific special parameters.

Waveform 1–5 (Standard): Continuous speed (free running), independent of the clock grid.

Waveform 6–7 (Staircase): Number of steps (2 to 16). Turning below zero reverses the direction.

Note: Settings are retained when changing modes.

Waveform 8 (Sample & Hold): The last 8 steps are saved as a sequence.

Adjusts the loop length (1 to 8 steps).

Limit Right (8): Advances/rotates the sequence within the grid.

Limit Links (1): Manually cycles through the held voltage.

Note: Switching modes (off/on) re-shuffles the sequence.

Waveform 9 (Trigger/Bounce): Adjusts the warp intensity (number/acceleration of bounces).

Note: Settings are retained when switching modes.

Reset Functions:

All reset operations are quantized to the next logical beat.

Global Reset (RESET / RESET IN button): All 8 channels immediately jump to the phase starting point (0°).

Existing edit parameters are retained.

Single Channel Deep Reset (hold encoder + RESET): Resets only the active channel.

Phase jumps to 0°.

All special parameters are reset to their default values

(e.g., 4 steps, warp 0, S&H length 8).

All settings are automatically saved to the EEPROM after 5 seconds of inactivity and restored on the next startup.
